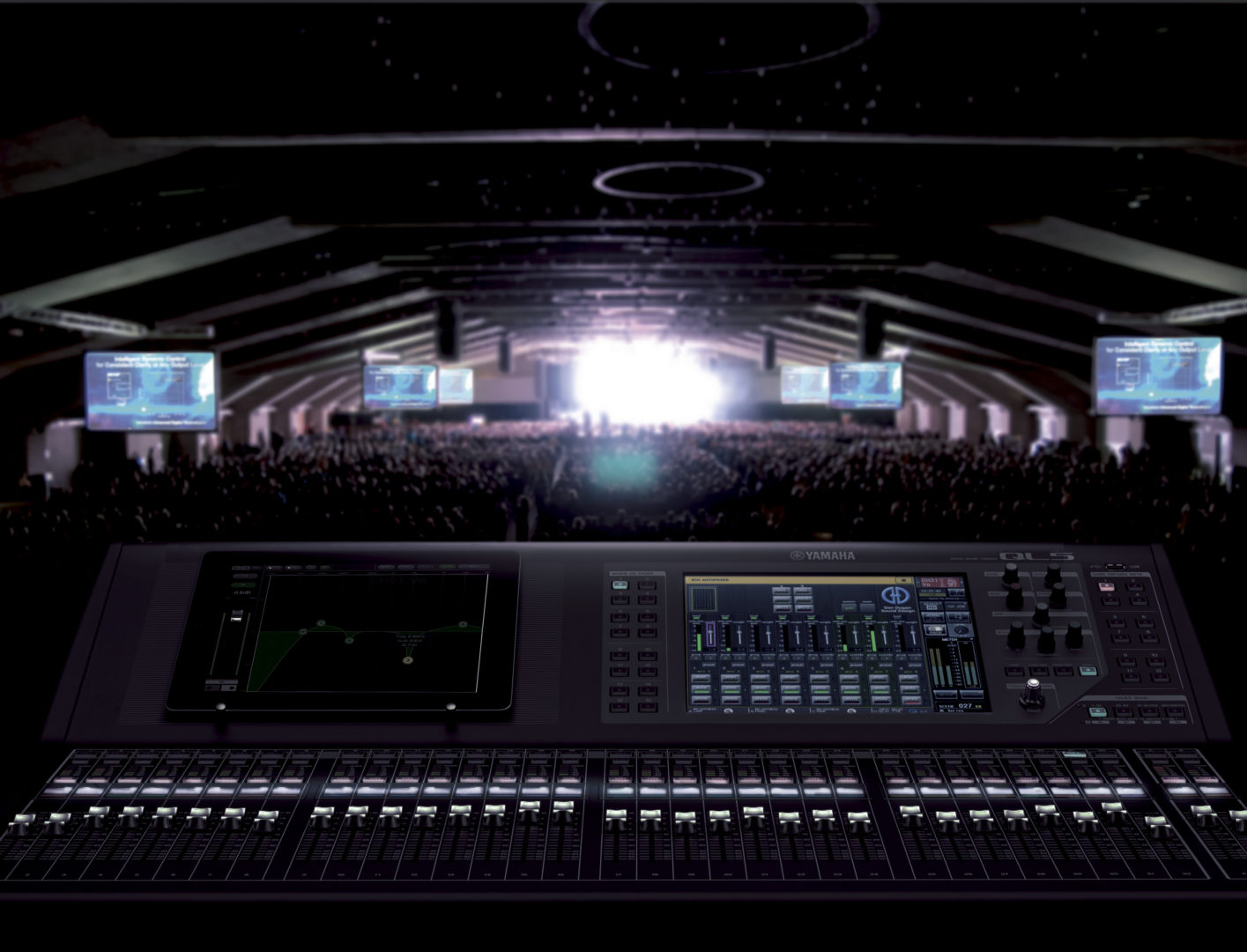

The Yamaha QL5 is an all-in-one mixing, processing and routing digital mixer with a 32 + 2 fader configuration that adapts to a wide range of channel layouts. The QL5’s compact console footprint combined with large-scale capabilities makes it ideal for small to medium scale live sound performances, and much more

Input Mixing Channels: 64 Mono + 8 Stereo

Sampling Frequency Rate: Internal: 44.1 kHz/ 48 kHz, External: 44.1 kHz

Signal Delay: Less than 2.5 ms

Fader: 100 mm motorized, Resolution= 1,024 steps

Total Harmonic Distortion: Less than 0.05%

Frequency Response: +0.5, -1.5 dB 20 Hz- 20 kHz

Dynamic Range: 112 dB typ

Crosstalk: -100 dB*1

Power Requirements: 100-240 V 50/60 Hz

Power Consumption: 200 W

Accessories: Owner’s Manual, Dust Cover, Power Cord, DVS License Sheet, Nuendo Live

Dimensions: 32.6 x 10.7 x 22.2 inches (W x H x D)

Net Weight: 48.1 lb

Equivalent Input Noise: -128 dBu typ

Residual Output Noise: -88 dBu

Display: 10 inch Touch Panel
