Roland V-160HD

Streaming Video Switcher

Mouse roll-over to zoom image.

Product Highlights

16 inputs with frame rate converter – (8) 3G-SDI and (8) HDMI (four with scalers)
7 video outputs – (3) 3G-SDI, (3) HDMI, and USB-C streaming webcam (UVC)
On board monitor to view Multi-view, Inputs, Still bank, or Program video
40-channel Digital Audio mixer from embedded audio, XLR/TRS combo jack w/ selectable Phantom power, and RCA Line
Tally breakout included plus Roland Smart Tally to iOS/Android

Rentex No. SWROLV160 | Mfr No. V-160HD

This Roland V-160HD is everything you need to manage a hybrid event room. Up to 16 mixed video inputs can be composited in the eight-layer video effects engine on Program, with an AUX bus and Multiviewer also available for up to 7 outputs. USB-C Streaming webcam output is included for use without any additional devices or drivers, using standard UVC video drivers for up to 1080p streaming.

An impressive 40 channels of audio can be handled by the built-in auto mixing to bring together analog sources as well as the embedded audio. In addition to the standard GPIO Tally breakout for studio cameras, Roland Smart Tally allows any iOS or Android device to act as tally for other stations such as graphics or playback.

The new 3.0 features include:

Upgrade to 3 Aux buses – Use Aux 1, 2, or 3 on any of the available outputs, and control them directly from the panel or within the app
iPad Video Monitoring and Switching—Full control is now available using the iPad Remote app and many of the latest iPad models with USB-C.
- This enables a touchscreen multiviewer capability for simplified switching
External PTZ Control Enhancements—You can now adjust pan, tilt, and zoom for each camera and assign/recall presets from a USB numeric keypad.
New Audio Effects—Loudness auto gain and adaptive noise reduction options help improve sound quality, especially during streaming events.

V-160 - Reference Manual

V0160 - Startup Guide

Introducing the Roland V-160HD Streaming Video Switcher

VIDEO
Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
Number of Video Channels: 16 channels
Video Input Formats: HDMI IN 1–4, SDI IN 1–8
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 OUTPUT FORMAT = 720p
*2 OUTPUT FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz, 60 Hz
*4 FRAME RATE = 50 HzHDMI IN 5–8
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz, 60 Hz
*2 FRAME RATE = 50 Hz
Video Output Formats: HDMI OUT 1–2, SDI OUT 1–3:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *8
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *8
1080/59.94p *3, *4
1080/60p *3, *5
1080/29.97p *3, *6
1080/30p *3, *7
1080/50p *3, *8
1080/25p *3, *9
1080/23.98p *3, *10
1080/24p *3, *11
*1 OUTPUT FORMAT = 720p
*2 OUTPUT FORMAT = 1080i
*3 OUTPUT FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 60 Hz
*6 FRAME RATE = 29.97 Hz
*7 FRAME RATE = 30 Hz
*8 FRAME RATE = 50 Hz
*9 FRAME RATE = 25 Hz
*10 FRAME RATE = 23.98 Hz
*11 FRAME RATE = 24 HzHDMI OUT 3:
1080/59.94p *1
1080/60p *2
1080/29.97p *3
1080/30p *4
1080/50p *5
1080/25p *6
1080/23.98p *7
1080/24p *8
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 60 Hz
*3 FRAME RATE = 29.97 Hz
*4 FRAME RATE = 30 Hz
*5 FRAME RATE = 50 Hz
*6 FRAME RATE = 25 Hz
*7 FRAME RATE = 23.98 Hz
*8 FRAME RATE = 24 HzUSB STREAM:
1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
1080/60p, 720/60p, 640 x 480/60p *2
1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
1080/30p, 720/30p, 640 x 480/30p *4
1080/50p, 720/50p, 640 x 480/50p *5
1080/25p, 720/25p, 640 x 480/25p *6
1080/23.98p, 720/23.98p, 640 x 480/23.98p *7
1080/24p, 720/24p, 640 x 480/24p *8
*Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
*1 FRAME RATE(USB OUT) = 59.94 Hz
*2 FRAME RATE(USB OUT) = 60 Hz
*3 FRAME RATE(USB OUT) = 29.97 Hz
*4 FRAME RATE(USB OUT) = 30 Hz
*5 FRAME RATE(USB OUT) = 50 Hz
*6 FRAME RATE(USB OUT) = 25 Hz
*7 FRAME RATE(USB OUT) = 23.98 Hz
*8 FRAME RATE(USB OUT) = 24 Hz
Still Image:: Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 16 files in the internal memory.
* It can be exported in the USB flash drive.
* PNG alpha channel supported.
Video Effects: Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 4 (SQUARE, CIRCLE, DIAMOND), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key)
Others: Multi-View(3 types), Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
AUDIO
Audio Processing: Sample rate: 24 bits, 48 kHz
Number of Audio Channels: 40 channels
Audio Formats: USB STREAM (input/output): Linear PCM, 24 bits, 48 kHz, 2 ch
Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)
Audio Effects: Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 3-Band equalizer, Voice changer, Delay, Auto mixing
Master Effects: Reverb, 3-Band equalizer, Delay, Multi-band compressor, Limiter
Others: Output fade, Test tone output
COMMON SECTION
Other Functions: Preset Memory (30 types)
Macro Control (100 types)
Sequencer Control (1,000 steps)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Smart Tally
Remote Camera Control (Up to 16 units)
External Rec Control

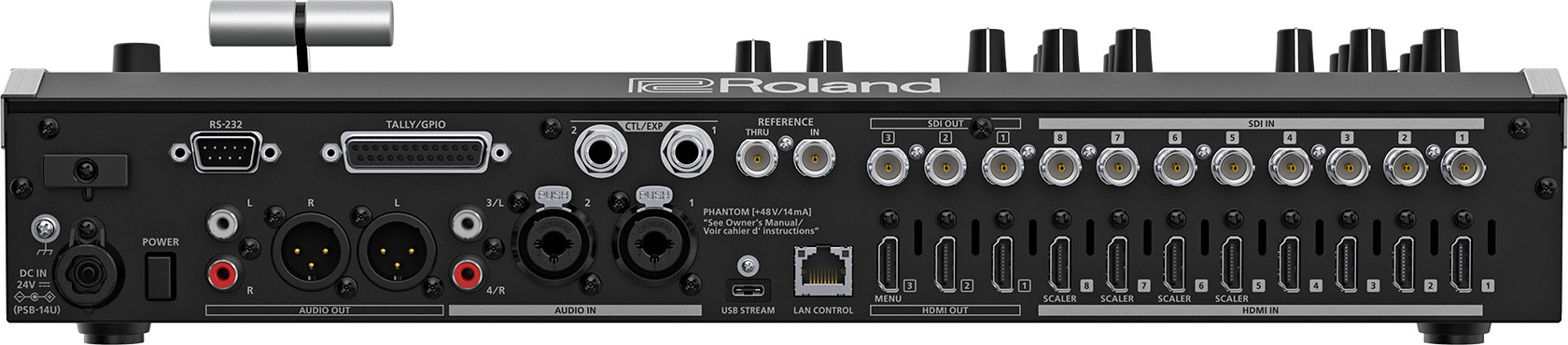

CONNECTORS
Video Input Connectors: HDMI IN 1–4: HDMI type A x 4
* HDCP SupportedHDMI IN 5–8: HDMI type A x 4
* HDCP Supported
* Multi-format SupportedSDI IN 1–8: BNC type x 8
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
Video Output Connectors: HDMI OUT 1–3: HDMI type A x 3
* HDCP SupportedSDI OUT 1–3: BNC type x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292MUSB STREAM: USB Type-C (TM)
Audio Input Connectors: Analog:
AUDIO IN 1–2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
AUDIO IN 3/L, 4/R: RCA phono typeDigital:
USB STREAM: USB Type-C (TM)
Bluetooth
HDMI IN 1–8: HDMI type A x 8
SDI IN 1–8: BNC type x 8
Audio Output Connectors: Analog:
AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone typeDigital:
USB STREAM: USB Type-C (TM)
HDMI OUT 1–3: HDMI type A x 3
SDI OUT 1–3: BNC type x 3
Other Connectors: USB MEMORY: USB A type (for USB flash drive, for remote control from USB Numeric Keypad)
USB STREAM: USB Type-C (TM) (for remote control from PC and iPad)
Bluetooth: for remote control from iPad
CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
LAN CONTROL: RJ45 100BASE-TX (for Remote Control)
Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-Level
AUDIO INPUT/OUTPUT CHARACTERISTICS
Input Level: AUDIO IN 1, 2: -60–+4 dBu (Maximum: +24 dBu)
AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu)
Input Impedance: AUDIO IN 1, 2: 9.4 k ohms (ANALOG GAIN 0<24 dBu), 74.4 k ohms (ANALOG GAIN ≧ 24dBu)
AUDIO IN 3/L, 4/R: 47 k ohms
Output Level: AUDIO OUT (XLR): +4 dBu (Maximum: +24 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +10 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance: AUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohms
OTHERS
Bluetooth: Ver 4.2
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
Display: 4.3 inches TFT Color LCD: 480 x 272 dots
Power Supply: AC Adaptor
Current Draw: 2.5 A
Power Consumption: 55 W
Operation Temperature: +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions: 437 (W) x 253 (D) x 103 (H) mm
17-1/4 (W) x 10 (D) x 4-1/16 (H) inches480 (W) x 253 (D) x 103 (H) mm
18-15/16 (W) x 10 (D) x 4-1/16 (H) inches
* When rack mount angles are fitted.
Weight (excluding AC adaptor): 3.9 kg
8 lbs 10 oz
