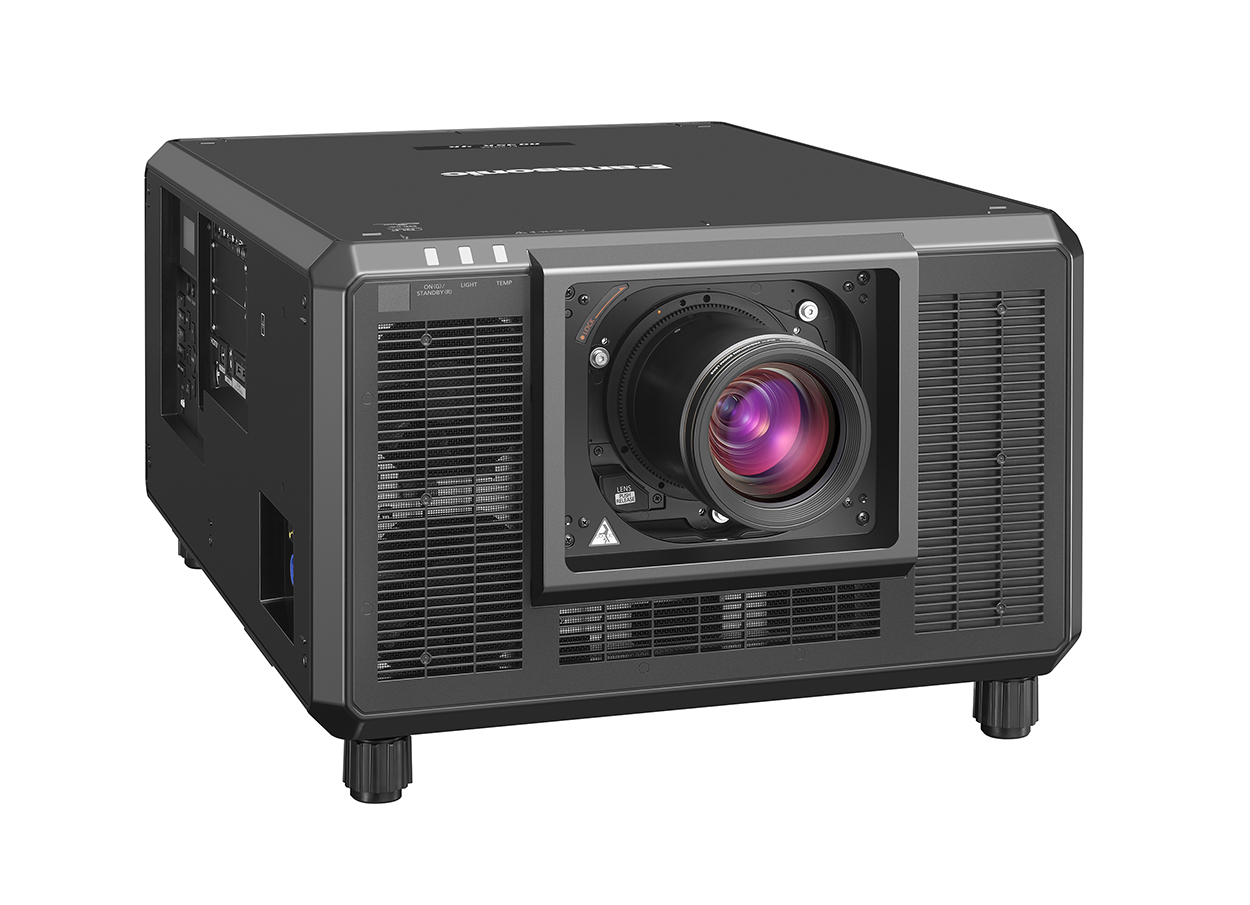

The Panasonic PT-RQ35KU projector brings a big punch in a small box. It is the smallest and lightest 3-chip DLP projector in its class. The laser light source achieves 30,500 lumens at 4K resolution (3840×2400) with quad pixel drive on. Two blue and one red laser expand color-space by 114%. Vivid reds and deep, natural blues heighten realism and help create an immersive projection experience.

The RQ35 comes with multi-projector sync in/out, HDMI (compatible with HDCP 2.2). Rentex supplies the RQ35 with two additional input cards as standard, the ET-MDNHM10, which has 2x HDMI inputs (HDCP 2.2) giving three HDMI inputs. The ET-MDN12G10 has 2x Inputs and 2x Inputs/Outputs, which allows inputs of up to 12G-SDI. Digital link offers RJ-45 x 1 for network and DIGITAL LINK connection (HDBaseT compliant), 100Base-TX, compatible with Art-Net, PJLink (Class 2), Deep Color, HDCP 2.2, or 4K/60p signal input. The RQ35 includes the newly developed Gradation Smoother which reduces banding noise in gradients of shaded color. The improved edge-blending function allows you to adjust the black border to screen curvature using 17 control points for precise black-level calibration.

• PANAPFD765- Panasonic ET-PFD765 cage
• VERSICLAMP- Versi-clamp swivel
• PANA12GSDI- Panasonic RQ 12G SDI input card
• PANAHDMI- Panasonic RQ Dual HDMI input card
• CARQ35- Case, Panasonic PT-RQ35KU
• PWRCONL630- Power-Con(F) to L6-30P(M)
• RCPANAV3- Panasonic projector remote control version 3

Power supply:
AC100 V–AC120 V/AC200 V–AC240 V 50 Hz/60 Hz
AC100 V–AC120 V, 50 Hz/60 Hz (Brightness is restricted to approximately 1/3)
Power consumption: 2550 W (Max. 23amps @110v/Max. 13amps @200v)
Operation mode*1:
[Normal] 2060 W
[Eco] 1650 W
[Quiet] 1370 W
Standby mode*1: 14 W
Shutter*1: 330 W
BTU value: Max 8,713 BTU
DLP chip:
Panel size 24.4 mm (0.96 in) diagonal (16:10 aspect ratio)
Display method DLP™ chip x 3, DLP™ projection system
Number of pixels 2,304,000 (1,920 x 1,200) x 3
Refresh rate:
120Hz Refresh rate varies depending on scanning frequency. (240Hz When the optional High Frame Rate Upgrade Kit ET-SUK10 is activated)
Light source: Laser diodes
Light output- Operation mode:
[Normal] 32,000lm (Center)*3 /30,500lm*4
[Eco] 24,000 lm*4
[Quiet] 20,000 lm
Time until light output declines to 50%*5- Operation mode:
[Normal] 20,000 hours
[Eco] 24,000 hours
[Quiet] 26,000 hours
Resolution: 3840 x 2400 when Quad Pixel Drive set to ON
Contrast ratio: 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
ADD TO WEB SITE FORM MAY 2020 R1
Screen size (diagonal):
1.78–25.40 m (70-1,000 in)
1.78–15.24 m (70-600 in) ET-D75LE8/ET-D3LET80
5.08–15.24 m (200-600 in) ET-D3LEW200, ET-D3LEU100
3.05–15.24 m (120-600 in) ET-D75LE95
Center to corner zone ratio: 90% Lens Optional (no lens included with this model)
Lens shift:
Vertical (from center of screen) ±55% ±44% with ET-D75LE6, +68–78% with ET-D75LE95, ±55% with ET- D3LEU100, ±48% with ET-D3LEW200
Horizontal (from center of screen) ±20% ±15% with ET-D75LE6, ±12% with ET-D75LE95, 0–+25% with ET- D3LEU100, ±15% ET-D3LEW200
Installation: Ceiling/floor, front/rear, free 360-degree installation
Compatible signal:
HDMI:
Moving image signal resolution: 480/60p, 576/50p to 4096 x 2160/60p
Still image signal resolution: 640 x 480 to 3840 x 2400 (non-interlace)
Dot clock frequency: 25 MHz to 594 MHz
DIGITAL LINK:
Moving image signal resolution: 480/60p, 576/50p to 4096 x 2160/60p
Still image signal resolution: 640 x 480 to 3840 x 2400 (non-interlace)
Dot clock frequency: 25 MHz to 297 MHz
DisplayPort: This is supported when the optional Interface Board (Model No.: ET-MDNDP10) is installed in the slot.
Moving image signal resolution: 720/50p to 4096 x 2160/60p
Still image signal resolution: 640 x 480 to 3840 x 2400 (non-interlace)
Dot clock frequency: 25 MHz to 594 MHz
DVI-D: This is supported when the optional Interface Board (Model No.: ET-MDNDV10) is installed in the slot.
Moving image signal resolution: 480/60p, 576/50p to 2048 x 1080/60p
Still image signal resolution: 640 x 480 to 1920 x 1200 (non-interlace)
Dot clock frequency: 25 MHz to 162 MHz for DVI-D 2 input
SDI: This is supported when the Interface Board (Model No.: ET-MDN12G10) is installed in the slot.
HD-SDI signal
3G-SDI signal
6G-SDI signal
12G-SDI signal
ADD TO WEB SITE FORM MAY 2020 R1
SDI Optical: This is supported when the optional Interface Board (Model No.: ET-MDNFB10) is installed in the slot.
Single link HD-SDI signal SMPTE ST 292 compliant
Single link 3G-SDI signal SMPTE ST 424, 425-2 compliant
Single link 6G-SDI signal SMPTE ST 2081-1, 2081-10 compliant
Single link 12G-SDI signal SMPTE ST 2082-1, 2082-10 compliant
Terminals/SLOT:
HDMI IN HDMI x 1, HDCP 2.2 compatible, Deep Color compatible
DIGITAL LINK RJ-45 x 1, for network and DIGITAL LINK connections (HDBaseTTM compliant), PJLink (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible
MULTI PROJECTOR SYNC IN BNC x 1, TTL high impedance
MULTI PROJECTOR SYNC OUT BNC x 1, TTL output: Maximum 10 mA
SERIAL IN D-Sub 9 p x 1, RS-232C compliant, for computer control
SERIAL OUT D-Sub 9 p x 1, RS-232C compliant, for computer control
REMOTE 1 IN M3 stereo mini jack x 1, for remote control (wired)/for projector connection control
REMOTE 1 OUT M3 stereo mini jack x 1, for remote control (wired)/for projector connection control
REMOTE 2 IN D-Sub 9 p x 1, for contact control
LAN RJ-45 x 1, for network connection, PJLink (class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
USB USB connector (type A) x 1, for connecting the optional Wireless Module (Model No.: AJ- M50Series), for connecting USB memory
DC OUT 1 / DC OUT 2 USB connector (type A) x 2, for power supply only (DC 5 V, 2 A total for two terminals)
SLOT 1 / SLOT 2 SLOT x 2, SLOT NX specification, for installing the Interface Board
Dimension (W x H x D):
598 x 353 x 780 mm (23-17/32 x 13-29/32 x 30-23/32 inches) (not including protruding parts)
Weight: 69.8 kg (154 lbs.) without cage, 86.2 kg (190 lbs.) with cage
Operating noise 49 dB (46 dB [Quiet])
Laser Classification:
Laser Class USA and Canada: Class 3R (IEC 60825-1:2007)
Other countries or regions: Class 1 (IEC/EN 60825-1:2014)
Risk Group Risk Group 3 (IEC 62471-5:2015)
Operating environment:
Operating temperature 0-45 °C (32-113 °F)
Operating humidity 10-80 % (no condensation)
