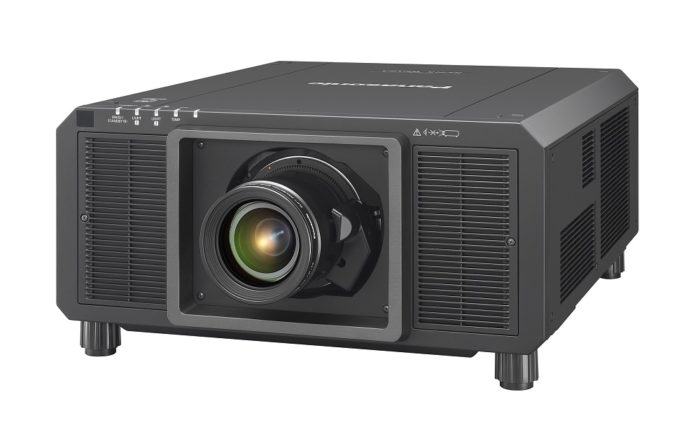

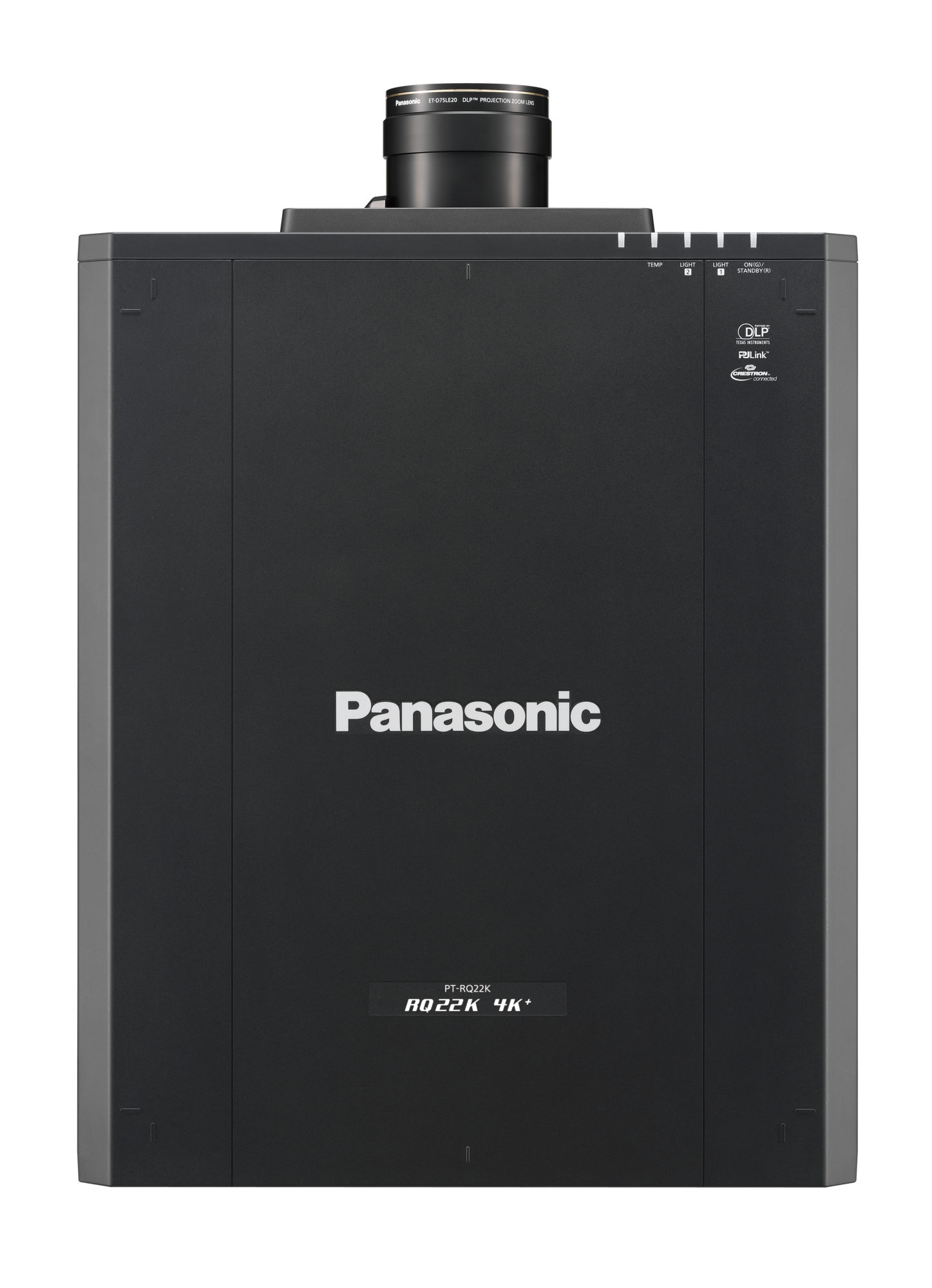

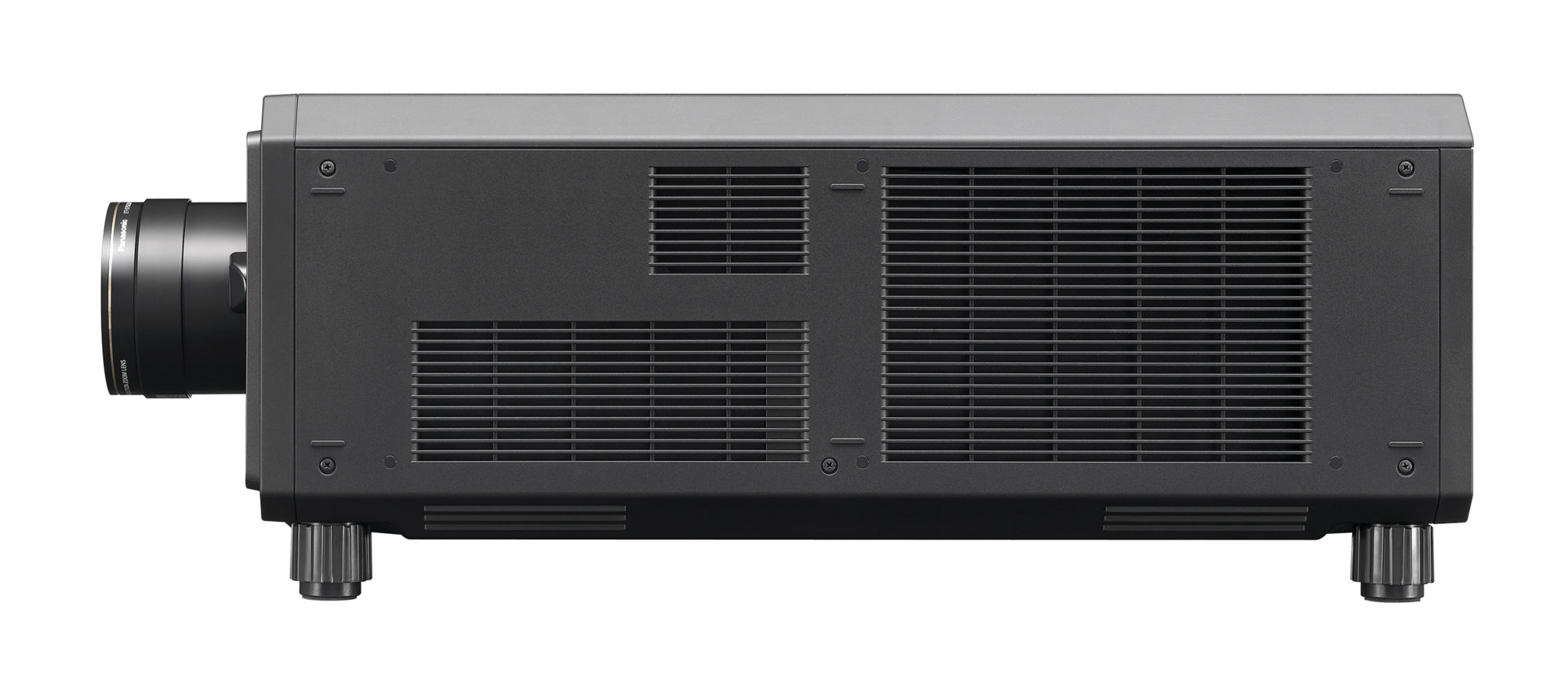

Panasonic PT-RQ22K

20,000 Lumens 3-Chip DLP Laser Projector

Mouse roll-over to zoom image.

Product Highlights

Bright and Vivid Picture Quality
Cage Included (ET-PFD565)
Compatible with D75LE and D3LE lenses
2560×1600 native resolution – 5120×3200 with Quad Pixel Drive ON
Dynamic Contrast Function for High 20,000:1 Contrast

Rentex No. RQ22 | Mfr No. PT-RQ22K

Compact and filterless, 20,000 lumen, 4K+ Solid Shine Laser Projector provides stunning image quality in a compact body designed for large venues. Subrent it today!

Panasonic PT-RQ22K Spec Sheet from Rentex

PT-RQ22K Mfr Spec

PT-RQ22K CAD Drawing

PT-RQ22K Brochure

PT-RQ22K Operating Instruction Manual

Panasonic Geometric & Setup Management Software Operating Instructions

ET-D3LE Series Lenses

(1) Panasonic PT-RQ22K W/CAGE
(1) Panasonic RQ HDMI Input Card
(1) Panasonic RQ 12G Input Card
(4) Versa Clamp for Panasonic Projectors
(1) Panasonic Projector Remote 3 Chip
(1) Projector USB Manual
(1) L630P to C19 Power
(1) 5-15P to C19 Power

Projector type	3-Chip DLP™ projector

Panel size	22.9 mm (0.9 in) diagonal (16:10 aspect ratio)
Display method	DLP™ chip x 3
Pixels	4,096,000 (2560 × 1600) × 3, total of 12,288,000 pixels, 49,152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON
Refresh rate	240 Hz
Light source	Laser Diode
Light output	20,000 lm / 21,000 lm (Center)
Time until light output declines to 50 %	20,000 hours (NORMAL) /24,000 hours (ECO)
Resolution	4K⁺ (5120 x 3200 pixels) (Quad Pixel Drive: ON)
Contrast^*2	20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
Screen size (diagonal)	1.78–25.4 m (70–1,000 in) with 16:10 aspect ratio 1.78–15.24 m (70–600 in) with the ET-D75LE8 / ET-D3LET80, 16:10 aspect ratio 3.05–15.24 m (120–600 in) with the ET-D75LE95, 16:10 aspect ratio
Center-to-corner uniformity	90 %
Vertical (from center of screen)	±59 % (±56 % with ET-D75LE6 / ET-D3LEW60, +69 % – +84 % with ET-D75LE95) (powered)
Horizontal (from center of screen)	±29 % (±19 % with ET-D75LE6 / ET-D3LEW60, ±21 % with ET-D75LE95) (powered)
Keystone correction range	Vertical: ±40° (± 22° with ET-D3LEW50, ±28° with ET-D75LE6 / ET-D3LEW60, +5° with ET-D75LE95), Horizontal: ±15° (0° with ET-D75LE95)
Keystone correction range with optional ET-UK20 Upgrade Kit	Vertical: ±45° (± 40° with ET-D75LE10 / ET-D3LEW10, ET-D75LE20 / ET-D3LES20, ±22° with ET-D3LEW50, ±28° with ET-D75LE6 / ET-D3LEW60, +5° with ET-D75LE95) Horizontal: ±40° (±15° with ET-D3LEW50, ET-D75LE6 / ET-D3LEW60, 0° with ET-D75LE95), When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding total of 55°.

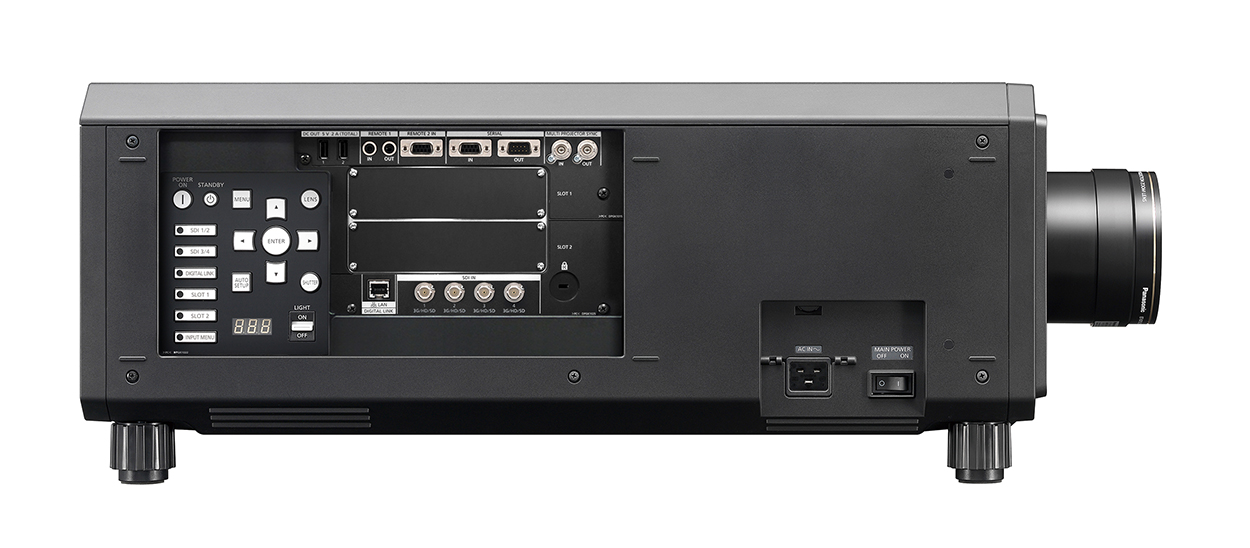

Terminals
SDI 1 IN	BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link A), Dual-link 3G-SDI (Link 1), Quad-link HD-SDI (Link 1), Quad-link 3G-SDI (Link 1)
SDI 2 IN	BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link B), Dual-link 3G-SDI (Link 2), Quad-link HD-SDI (Link 2), Quad-link 3G-SDI (Link 2)
SDI 3 IN	BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link A), Dual-link 3G-SDI (Link 1), Quad-link HD-SDI (Link 3), Quad-link 3G-SDI (Link 3)
SDI 4 IN	BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link B), Dual-link 3G-SDI (Link 2), Quad-link HD-SDI (Link 4), Quad-link 3G-SDI (Link 4)
MULTI PROJECTOR SYNC IN	BNC x 1
MULTI PROJECTOR SYNC OUT	BNC x 1
SERIAL IN	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT	D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
REMOTE 1 IN	M3 stereo mini-jack x 1 for wired remote control
REMOTE 1 OUT	M3 stereo mini-jack x 1 for link control
REMOTE 2 IN	D-sub 9-pin (female) x 1 for external control (parallel)
DIGITAL LINK/LAN	RJ-45 x 1 for network, DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2
DC OUT	USB Type A x 2 (for power supply DC 5 V total of 2 A)
Expansion Slot	SLOT 1 / SLOT 2 (total two terminals, vacant) for interface boards, SLOT NX compatible
Power supply	AC 200 V–240 V, 8.5 A, 50/60 Hz (Light output will decrease to approximately 50 % when using the projector with AC 100 V to AC 120 V [9.8A])
Power consumption	1,650 W (0.3 W with Standby Mode set to ECO, 4 W with Standby Mode set to NORMAL)
Cabinet materials	Molded plastic
Operation noise	46 dB
Dimensions (W x H x D)	600 mm x 307 mm x 745 mm ( 23 5/8˝ x 12 3/32˝ x 29 11/32˝ ) ( including protruding parts ); 598 mm x 270 mm x 725 mm ( 23 17/32˝ x 10 5/8˝ x 28 17/32˝ ) ( not including protruding parts )
Weight	55 kg (122 lbs.) without cage, 74 kg (164 lbs.) with cage
Operating environment	Operating temperature: 32–113 °F, operating humidity: 10–80 % (no condensation)
