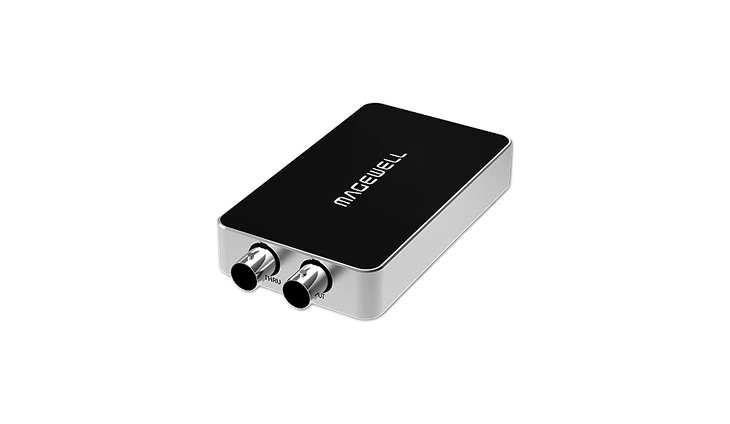

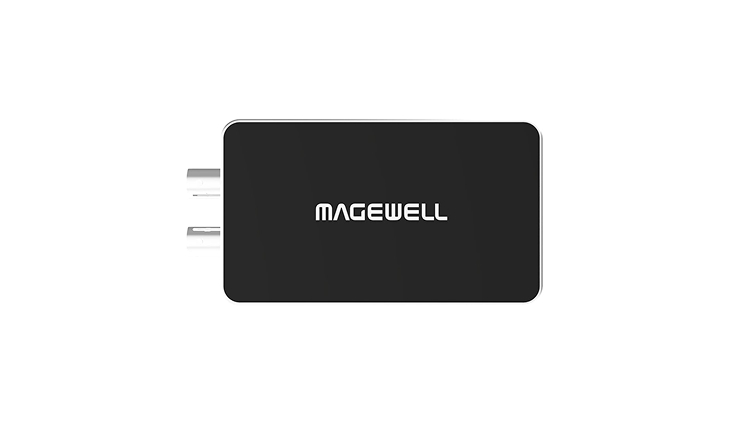

Magewell SDI USB Capture Plus (32050)

3G-SDI to USB 3 Capture Card with Audio

Magewell SDI USB Capture Plus (32050) for rent

Mouse roll-over to zoom image.

Product Highlights

3G-SDI Input and Loop through
3.5mm Input and Output for Audio (Line) + embedded audio
Up or Down scaling available in hardware
USB 3 interface for high bandwidth, uncompressed video
Driver free Windows, MacOS, Linux, Chrome OS Support

Rentex No. XVP2190 | Mfr No. 32050

Magewell’s USB Capture SDI Plus is a full quality, uncompressed 3G-SDI ingest device, compatible with software including Adobe’s suite, meeting and conferencing applications Google Hangouts, Microsoft Teams, Gotmeeting, Cisco Webex, Skype, and Zoom; Livestream, OBS Studio, vMix, and more. Audio input and output can be handled through line-level 3.5mm jacks or with embedded audio over SDI, giving you options.

Click here for Magewell’s complete list of compatible software

Magewell USB Capture SDI Plus User Manual

Magewell USB Capture SDI Plus Mfr Spec Sheet

Magewell USB Capture SDI Plus Short FAQs

Magewell USB Capture SDI Plus Spec Sheet from Rentex

Supported OS	Windows: 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64) Linux: (Ubuntu 12.04-16.10, CentOS 7) OS X: 10.9-10.11 macOS: 10.12 Chrome OS
Supported APIs	Windows DirectShow Wave API/DirectSound/WASAPI Linux V4L2 ALSA OS X/macOS QuickTime AV Foundation
Supported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any Other DirectShow, V4L2, QuickTime, AV Foundation Based Encoding, or Streaming Software
Input Interface	SD/HD/3G-SDI: 1 x BNC Unbalanced Line-In: 3.5 mm Jack

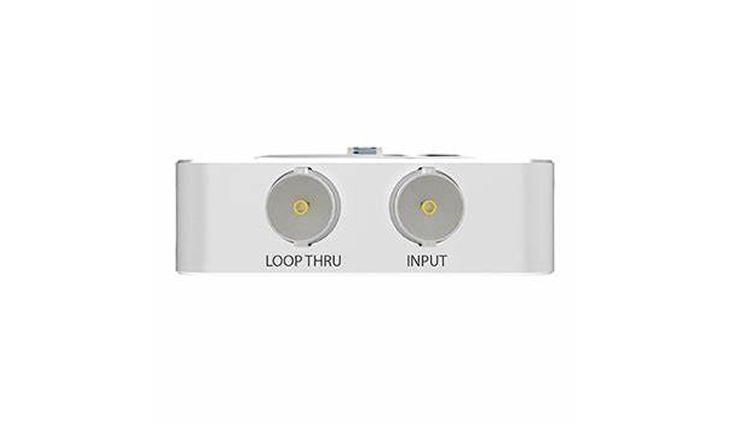

Output Interface	Loop-Through: 1 x BNC Unbalanced Line-Out: 3.5 mm Jack
Host Interface	USB 3.0: Compatible with USB 2.0/3.1
Input	Resolution Supports up to 2048 x 1080SDI Specific Features Integrated Cable Equalizer Supporting Cable Lengths up to 459′ / 140 Meters for 3G-SDI SignalsSupport for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS Standards Support for 2K (2048×1080) Mode Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 Color Sampling Support for 10/12-bit Color Depth Support for extraction of SMPTE 352 Payload Identifier Support for up to 2 (Mono) Audio Channels at 48 kHzSupport for Extraction of Audio Formation Information & Channel Status Data Limited Support of 3Gb-DS: Only the First Stream Can Be Captured Limited Support for Capture of the First Link of Dual-Link Interfaces: YCbCr 4:2:2 10-Bit 1080p 50/59.94/60: Captured as 1080i 50/59.94/60 YCbCr 4:4:4 10-Bit: Captured as 4:2:2 RGB 4:4:4: R/B Sub-Sampled
Analog Audio	Extract the Embedded SDI Audio and Output via 3.5 mm Unbalanced Line Out Capture Analog Audio via 3.5 mm Unbalanced Line-In Interface
Video Capture Format	Support for Capture Resolutions up to 2048×1080 Support for Capture Frame Rates up to 120 fps (Actual Capture Frame Rate Can Be Limited by the USB Bandwidth and Internal Working Frequency. Typical Capture Frame Rates on the Intel USB 3.0 Controller are as Follows:) 1920×1080 YUY2 (up to 70 fps) 1920×1080 RGB24 (up to 60 fps) Support for YUY2 & UYVY4:2:2 8-Bit Support for RGB24 & RGB32 4:4:4 8-Bit The Default Capture Format Is YUY2 More Capture Format Can Be Set Using USB Capture Utility
Power Consumption	5 V Max Current: ~0.5 A Max Power Consumption: ~2.5 W
Environment	Operating Temperature: 32 to 122°F / 0 to 50°C Storage Temperature: -4 to 158°F / -20 to 70°C Relative Humidity: 5 to 90% Non-Condensing
Dimensions	4.36 x 2.24 x 0.67″ / 11.07 x 5.68 x 1.7 cm
