An All-in-one design with a high quality 4K UHD camera and beamforming microphone array, the Logitech Meetup can easily integrate your huddle room or small meeting room into any video conferencing platform.

With Skype™, Teams, Zoom™, Fuze™ and Hangouts certifications, turn-key performance is guaranteed. Compatible support is available for any other video conferencing, recording, and broadcasting application that supports USB cameras includes BlueJeans, BroadSoft™, GoToMeeting™, Vidyo™, vMix and OBS Studio.

Video is capture with a 4K UHD sensor with wide 113° horizontal angle of view. Motorized pan (+/- 25°) and tilt (+/- 15°) yield a total coverage of 163° wide x 110° tall with 3 camera position presets. 5x HD zoom is available for HD output (1080p/720p) and RightSight^™ auto-framing companion app may be run on macOS 10.14+ or Windows 10 (64-bit) to track with AI.

Front-of-room alignment of voice and video is a first step for natural conversations. RightSound^™ technologies include a beamforming mic array that captures speech, while auto-leveling louder and softer voices and suppressing noise. The expansion mic puck is included to extend 5 meter (~16 ft) voice capture away from the main unit.

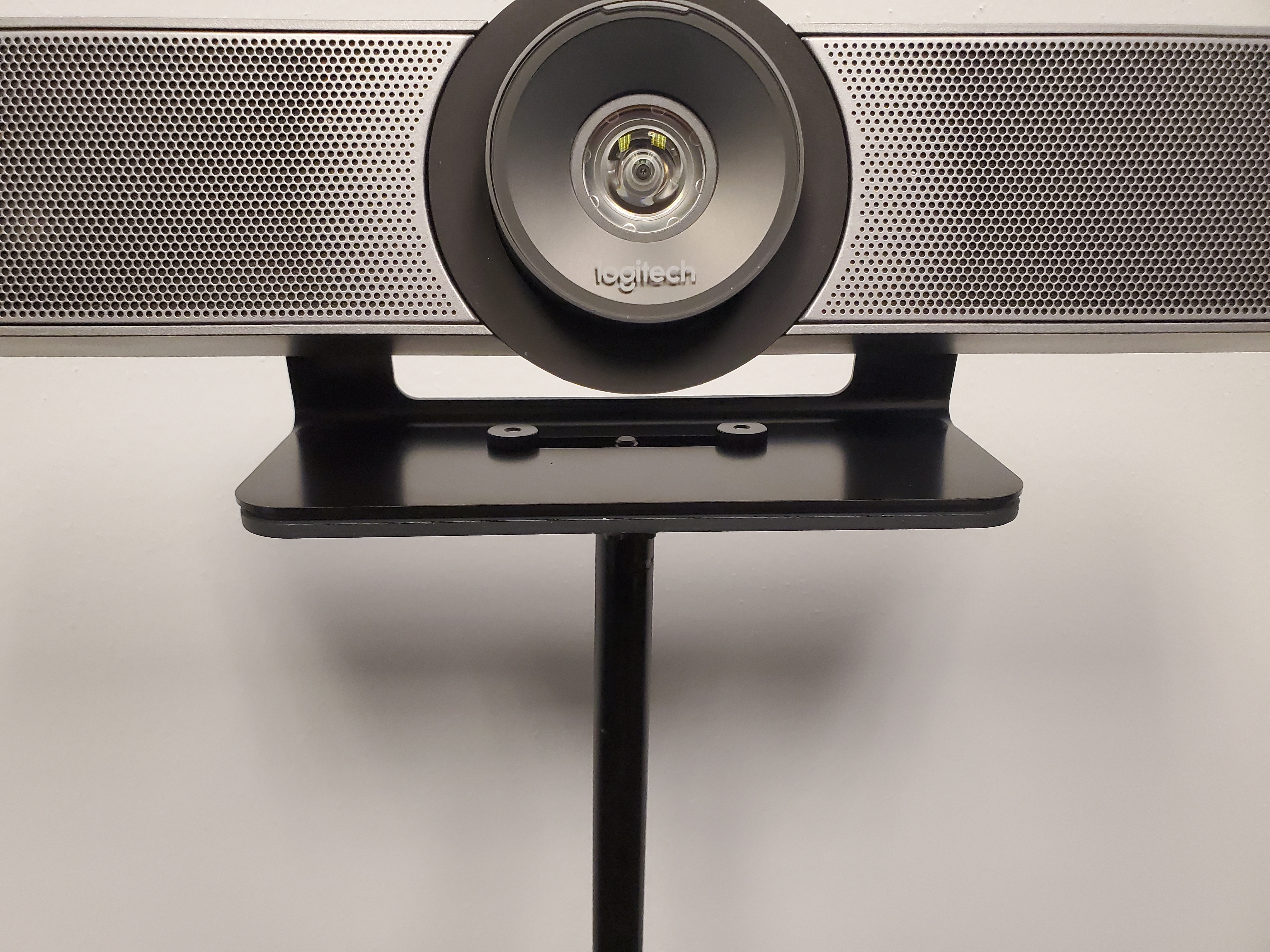

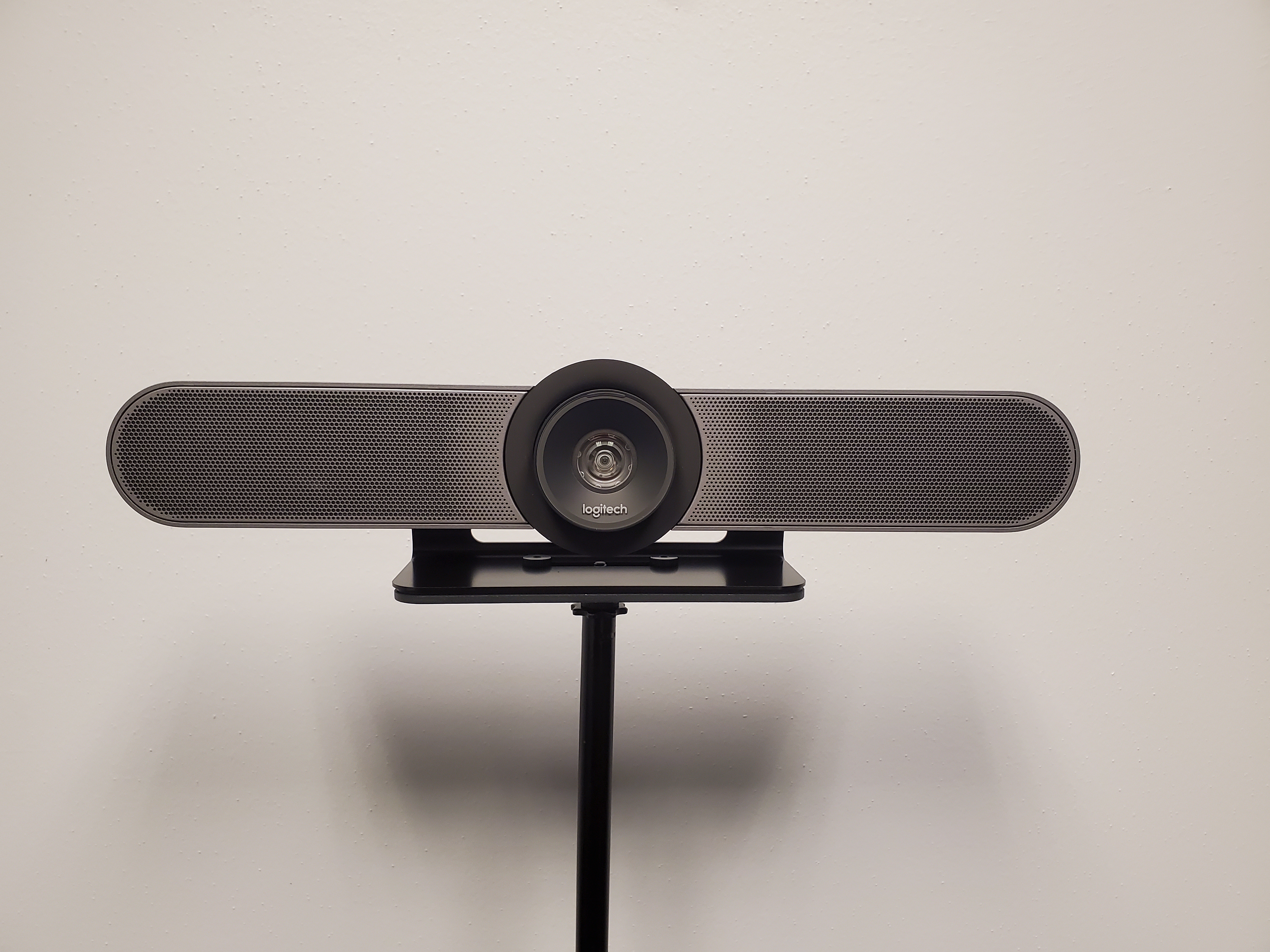

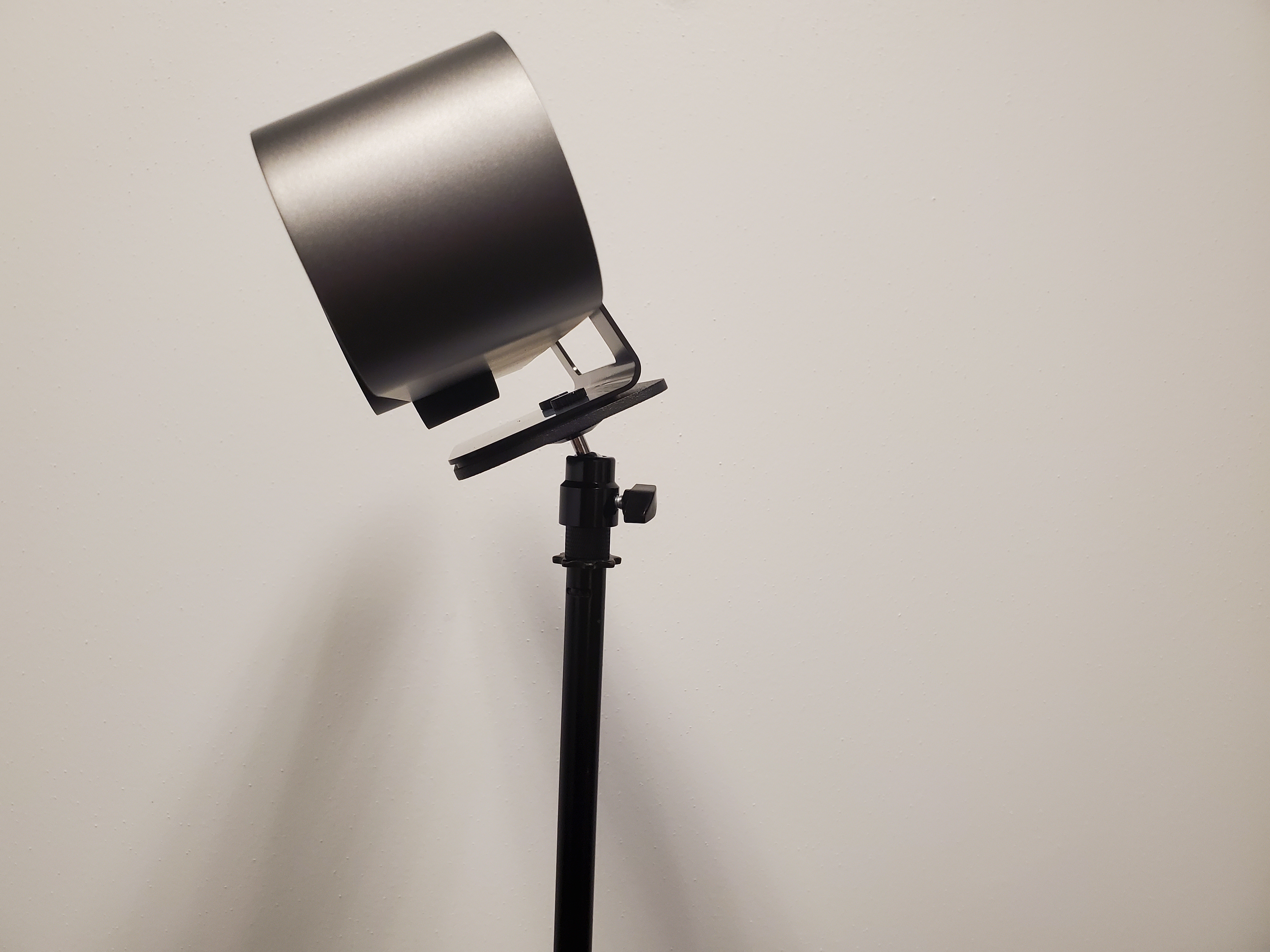

Including Heckler mounting plate provides a 1/4”-20 mount for use with the included speaker stand mount adapter (5/8”-27) and 1/4”-20 ball head, or any common camera mounting or clamping system.

• Expansion Microphone
• Tripod mount adapter (Heckler)
• Mic stand adapter (5/8 to ¼-20)
• Remote control
• USB Cables
• Power adapter

Meetup

• DIMENSIONS

  Main unit

  • Height: 4.09 in (104 mm)
  • Width: 15.75 in (400 mm)
  • Depth: 3.27 in (85 mm)
  • Weight: 2.3 lbs (1.04 kg)

  Remote Control

  • Height: 3.27 in (83 mm)
  • Width: 3.27 in (83 mm)
  • Depth: 0.39 in (10 mm)

• SYSTEM REQUIREMENTS

  Windows® 7, Windows 8.1, or Windows 10

  macOS® 10.10 or higher

  USB 2.0 prt (USB 3.0 Port and cable required for 4K video)

  RIGHTSENSE TECHNOLOGIES

  • Advanced technologies and design innovations that make video collaboration easy and automatic.

  RightLight

  • Low-light compensation
  • Video noise reduction
  • Low-light saturation optimization

  RightSight

  • Human figure detection
  • Auto-frame participants at meeting start
  • Auto-frame participants on-demand
  • Auto-reframe when participants enter, leave, or change positions

  RightSound

  • Machine learning AI trained to distinguish human speech from other sounds
  • AEC (Acoustic Echo Cancellation)
  • VAD (Voice Activity Detector)
  • Background noise suppression
  • Auto-level loud and soft voices
  • Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion
  • Anti-vibration enclosure

  COMPATIBILITY AND INTEGRATIONS

  • Plug-and-play USB connectivity
  • Certified for Skype™ for Business and Microsoft Teams
  • Zoom™ Certified
  • Fuze™ Certified
  • Certified for Google Hangouts Meet Hardware
  • Microsoft Cortana®
  • Cisco Jabber®
  • Compatible with BlueJeans, BroadSoft™, GoToMeeting™, Vidyo™, and other video conferencing, recording, and broadcasting applications that support USB cameras

• TECHNICAL SPECIFICATIONS

  Camera

  • Custom Logitech lens with 5x HD zoom and motorized pan (+/- 25°) and tilt (+/- 15°)
  • Field of View: Diagonal: 120°, Horizontal: 113°, Vertical: 80.7°
  • Total Room Coverage (field of view + pan and tilt): 163° wide x 110° tall
  • 3 camera position presets
  • RightSight auto-framing: Requires Windows 10 64-bit or macOS 10.14 or higher

  Video Performance

  • 4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable)
  • 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps)
  • 720p HD video calling (up to 1280 x 720 pixels @ 30 fps)

  Microphone

  • Integrated microphone with 3 beamforming elements
  • Pickup Range
    • MeetUp: 4 m (13.1 ft)
    • With optional Expansion Mic: 5 m (16.4 ft)
  • Sensitivity: -27 dB
  • Microphone frequency response: 90Hz-16KHz for full voice reproduction and high intelligibility without noise
  • Beamforming performance: Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
  • AEC (Acoustic Echo Cancellation)
  • VAD (Voice Activity Detector)
  • Microphone background noise suppression
  • Microphone date rate: 32KHz sampling rate
  • Recommended # of participants: 6
  • Recommended # of participants with expansion mic: 8

  Speaker

  • Volume adjustable to 95 dB SPL at 1/2 meter peak
  • Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
  • Distortion: 200-300Hz < 3%, 3000 Hz -10KHz < 1%
  • Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces

  General

  • Bluetooth wireless technology
  • RF remote control
  • Integrated table/wall mount; optional TV mount available
  • Kensington security slot

• PACKAGE CONTENTS

  • MeetUp ConferenceCam
  • Remote control
  • USB cable: 16 ft (5 m)
  • Power supply
  • Wall mount and hardware
  • User documentation

• WARRANTY INFORMATION

  Standard: 2-year limited hardware warranty included.
  Extended: Additional one-year extended warranty available at the time of hardware purchase.
  Contact your reseller for availability.
• • Meetup: 960-001101
  • MeetUp + Expansion Mic: 960-001201
