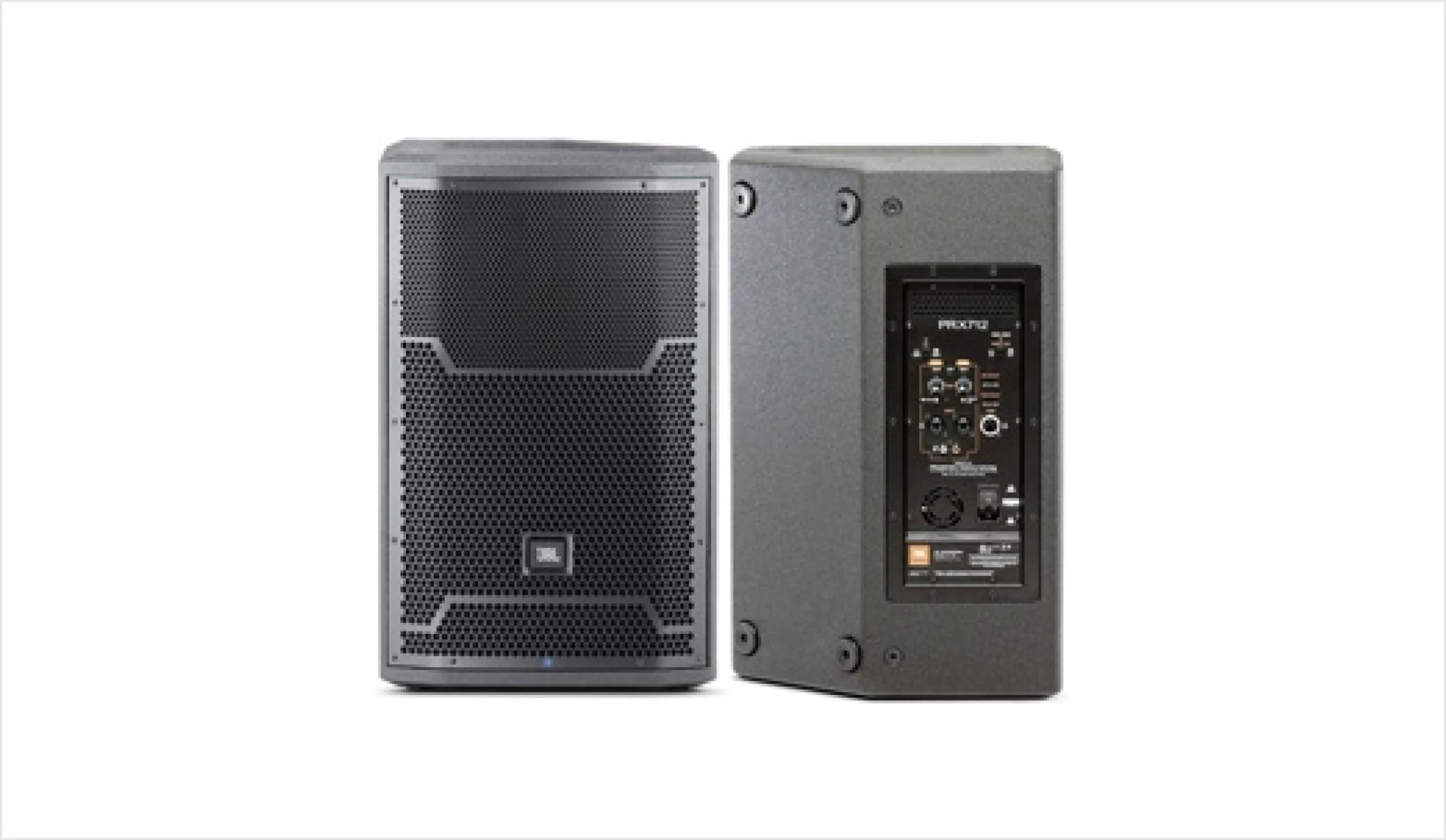

JBL PRX712

12" 1500W Two-Way Multipurpose Self-Powered Speaker

Mouse roll-over to zoom image.

Product Highlights

135 dB peak SPL
12″ Differential Drive® low-frequency driver for low-distortion and higher SPL
1.5″ diameter next generation JBL neodymium compression driver
JBL designed waveguide for accurate coverage
Optimized EQ for monitor or front-of-house applications

Rentex No. JBLPRX712 | Mfr No. PRX712

12″ Two-Way Full-Range Main System/Floor Monitor

The PRX712 is a compact and versatile speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA.

Rentex Spec PRX712

JBL PRX700 Spec Sheet

JBL PRX712 Datasheet

JBL PRX700 User Guide

Power Rating		1500 W
AC Power Input		100V – 240V~ 50/60 Hz
Frequency Range (-10 dB)		Main: 44.8 Hz – 19.6 kHz Monitor: 44.8 Hz – 19.5 kHz
Frequency Response (±3 dB)		Main: 55.7 Hz – 18.2 kHz Monitor: 56.5 Hz – 17.7 kHz
Coverage Pattern		90° x 50° nominal
Directivity Index (DI)		10.2 dB
Directivity Factor (Q)		10.4
Crossover Frequency		1.8 kHz
Maximum SPL		Normal: 135 dB Boost: 135 dB
Signal Indicators		Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input)		dbx Type IV™ limiter circuit
Input Impedance		20K Ohms (balanced), 10K Ohms (unbalanced)
LF Driver		1 x JBL 272G 305mm (12 in) woofer
HF Driver		1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Enclosure		Asymmetrical, 18 mm, plywood
Suspension / Mounting		Dual 36 mm pole socket, 12 x M10 Suspension Points
Transport		1 x injection molded handles with backing cup
Finish		Obsidian DuraFlex™ finish
Grille		Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Input Connectors		2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Output Connectors		1 male XLR balanced output
Dimensions (H x W x D)		612.394 mm x 384.556 mm x 341.376 mm (24.11 in x 15.14 in x 13.44 in)
Net Weight		19.4 kg (42.5 lb.)
