Instant Replay 3

The Instant Replay 3 is a standalone product that records and plays audio in an instant.

Mouse roll-over to zoom image.

Product Highlights

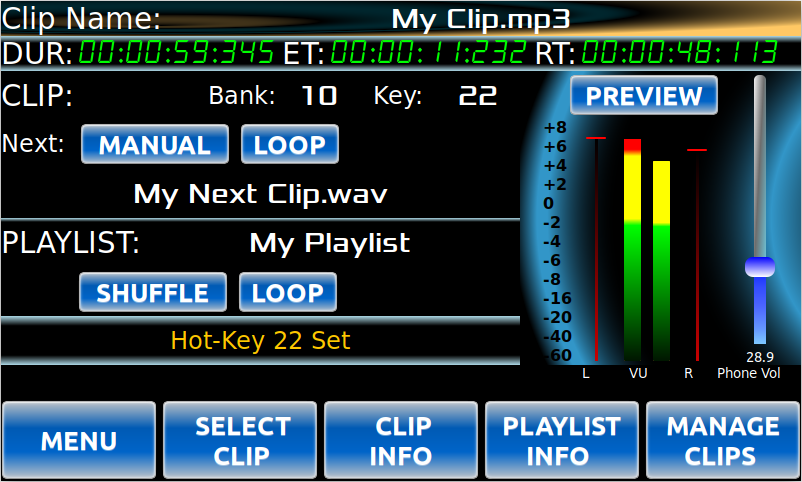

Full color touchscreen provides real-time information
50 GB of internal solid state memory
16 / 24-bit, 44.1K / 48K recording formats
Large illuminated buttons for easy hands-on operation

Rentex No. 360IR3 | Mfr No. 360 Systems

Instant Replay 3 is designed for creative people who need quick response, intuitive operation, and top-quality audio in a modern workflow. It’s a completely self-contained audio clip player in a box. And unlike PC’s, the Instant Replay 3 features physical buttons for immediate tactile feedback during audio clip playout.

Simplicity has been a strong point of the Instant Replay product for over 25 years and the latest iteration takes this ideal even further. Straightforward controls and the simplicity in setup and operation provide a complete standalone product. The Instant Replay does as its’ name suggests, records and plays audio in an instant. The greatly improved interface provides more operational information and ease of access to common functions. With no mechanical parts, operation is virtually silent making the Instant Replay ideal for in-studio use. Record and playout audio directly to and from the internal solid state memory. Make simple head/tail edits and quickly assign clips to any of the 50 hot-keys on any of the 50 banks. That’s up to 2500 audio cuts available for playout in an instant. Build individual playlists or use the Hot List feature to quickly build a stack list from the assigned Hot-Keys.

Instant Replay 3 Flyer

Instant Replay 3 Operations Manual

Included Accessories
IEC Power Cable

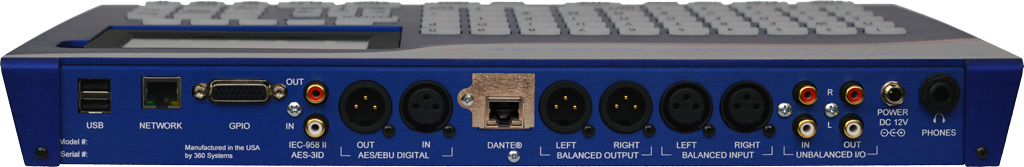

Rear Panel I/O	USB ports for keyboard, mouse or external memory devices Gigabit Ethernet network port for transferring content via FTP and file share network access 26 pin GPIO port for clip triggering and signaling of system events IEC-95811 or AES-75 ohm digital input/ output on RCA jacks AES/EBU Digital input/ output on XLR connectors Optional Dante Ethernet for IP based audio input and output Balanced analog output on XLR connectors Balanced analog input on XLR connectors Unbalanced analog input/ output on RCA jacks Power connection 1 /4″ headphone jack with Preview function to silence main outputs
Audio Format	16 or 24 bit stereo, 44.1, 48 sample rate. Automatic output sample rate conversion.
Analog Inputs	Balanced XLR or Unbalanced RCA
Analog Outputs	Balanced XLR or Unbalanced RCA
Digital I/O	AES/EBU XLR. IEC958Type II or AES-3id RCA
Ethernet audio I/O	Optional Dante® interface
Options	Dante® Audio Ethernet module. Provides audio over Ethernet to other Dante® enabled equipment. Legend Overlays – 50 pack of card stock cutout templates for notating keys
Unit Dimensions	17.32″L x 11.56″W x 1.75″H (44cm x 29.4cm x 4.5cm)
Unit Weight	5.76Lbs (2.62Kg)
US Shipping Dimensions	19.875″L x 14.25″W x 4.25″H (50.5cm x 36.2cm x 10.8cm)
US Shipping Weight	9.5lbs (4.31 Kg)
International Shipping Dimensions	22″Lx 16″W x 6″H (55.9cm x 40.6cm x 15.3cm)
International Shipping Weight	11.48Lbs (5.22Kg)
Country of Origin	USA

Specifications subject to change without notice. 360 Systems Instant Replay and 360 Systems are registered trademarks of 360 Systems in the US and other countries. Dante® is a trademark of Audinate Pty Ltd. © 2022 by 360 Systems.
