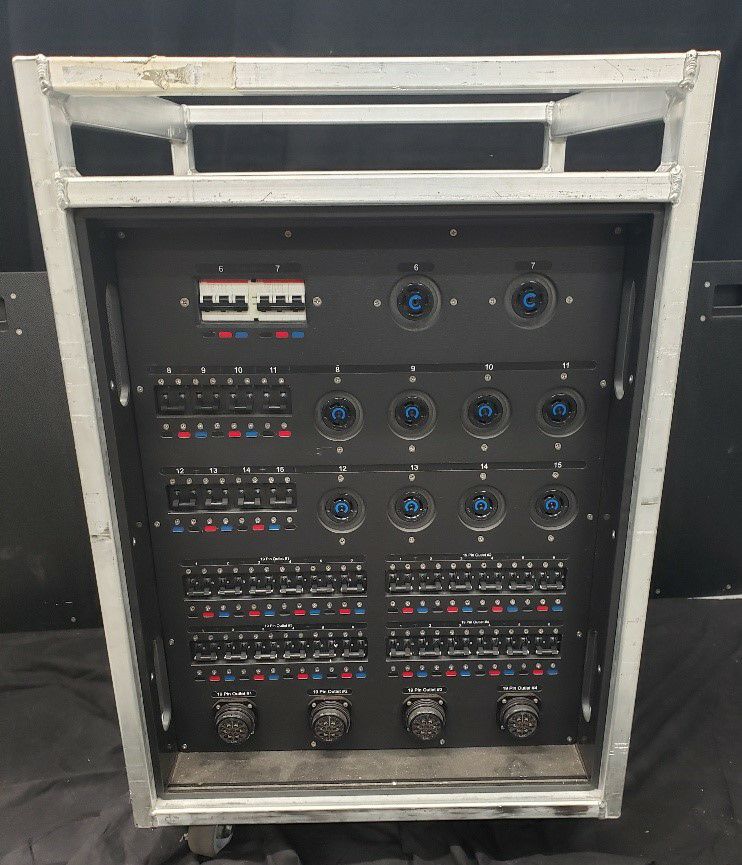

Indu Electric 400A Power Distro
120V/208V
Product Highlights
- 3 X 20A. 120V. Edison Outlet
- 4 X L21-30 3 Phase Outlet
- 8 X L6-30 208V. Twist Lock
- 4 X 19 Pin 208V. Outlet
Rentex No. -TP1
|
Mfr No. TP-5WPT-4x19P-208V-4xL2130-8xL630
Suitable for a wide range of high-power applications, the Indu Electric 400A Power Distro features:
- Main Breaker
- 100% Load rated hydraulic magnetic breakers for continuous use at full rated output
- Cam-Lok pass thru W/ safety covers
- Onboard monitoring of voltage and power draw
Input Type
5x Camlock
5x Camlock pass thru
3x LED
1x Dig Meter
1x Main MCCB 400A/3P
Branch Devices
3x 520
4x L21-30
8x L6-30
4x 19 Pin Outlet 208V
Protection
3x Breaker 20A/1P
4x Breaker 30A/3P
8x Breaker 30A/2P
24x Breaker 20A/2P
Dimensions
Length: 610,00 mm (24 inch)
Height: 860,00 mm (34 inch)
Width: 610,00 mm (24 inch)
Rating
Rated Voltage: 120/208V ~ 3Ø 4P/5W
Rated Current: 400A / 50/60Hz
Nema 1 Dry Locations
-
6' Tails
-
6' Tails
-
6' Tails
