Optoma TH1060p

4,500 Lumens DLP Projector

Optoma

Product Highlights

  • HD (1920×1080)
  • 2500:1 Contrast Ratio (full on/full off)
  • Inputs: HDMI (2), VGA (1), Component RCA (1), Composite RCA (1), S-Video (1)
  • 7.8 lbs, 12.8 x 4.29 x 10.19 inches (WxHxD)
Rentex No. OPT1060P | Mfr No. TH1060p

The Optoma TH1060P HD DLP Projector packs 4500 lumens of projection power combined with its 2500:1 contrast ratio and HD (1920 x 1080) resolution means it will provide a tack-sharp, vivid image in medium to large rooms and even those with high ambient light challenges.

Another of the TH1060P’s key features is its Texas Instruments DMD DLP chip. This 0.65″ chip processes not just the three primary colors (red, green and blue), that all other chips work on but also their complements: cyan, magenta and yellow. As a result, colors are so clear and lifelike that Texas Instruments calls its latest version of the technology “BrilliantColor”. DLP chips with Brilliant Color increase the brightness of colors by 50 percent vs. DLP chips without it.

The projector’s wide connectivity includes two HDMI, RS-232 and USB for mouse control, as well as monitor loop-through. An RJ-45 connector is also included for control of the projector or several of them, remotely over a network. As far as audio is concerned, the 3W sound system is sufficient enough.

Display Technology Single 0.65” DC2 DMD Chip DLP® Technology
Native Resolution HD (1920 x 1080)
Brightness 4500 Lumens
Contrast Ratio 2500:1 (full on/full off)
Lamp Life and Type 3000/2000 Hours (STD/Bright) 300W P-VIP
Throw Ratio 1.59 to 1.91:1 (Distance/Width)
Projection Distance 3.28’ to 32.8’ (1.0 to 10 m)
Image Size (Diagonal) 23.6” to 300” (0.6 to 7.62 m)
Remote Control IR Remote Mouse Control
Keystone Correction ±15° Vertical
Displayable Colors 1.07 Billion
Offset 115%
Computer Compatibility HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
Video File Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
Uniformity 85%
Projection Lens F=2.5-2.76, f=23.5-28.2 mm, 1.2x Manual Zoom and Focus
Loop Through D-Sub 15-Pin VGA Output (Functional in Both Normal and Standby Modes)
User Controls Complete On-Screen Menu Adjustments in 23 Languages

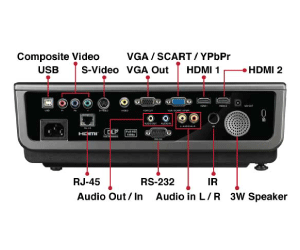

I/O Connectors Two HDMI, VGA-In, VGA-Out, Component, S-Video, Composite Video, Stereo RCA Audio-In, Stereo Audio-In, Stereo Audio-Out, RS-232, USB, RJ45 and 12V trigger.
Security Kensington® Lock Port and Keypad Lock
Projection Method Front, Rear, Ceiling Mount, Table Top
Product Weight 7.8 lb (3.53 kg)
Product Dimensions

(W x H x D)

12.8” x 4.29” x 10.19” (326 x 109 x 259 mm)
Audio 3-Watt Speaker
Noise Level 28dB/30dB
Horizontal Scan Rate 15KHz, 31 to 90KHz
Vertical Refresh Rate 50 to 85Hz
Operating Temperature 41 to 104°F (5 to 40°C), 85% Max Humidity
Power Supply AC Input 100-240V, 50-60Hz, Auto-Switching
Power Consumption 380W (Bright), 320W (STD), <1W (Standby)
