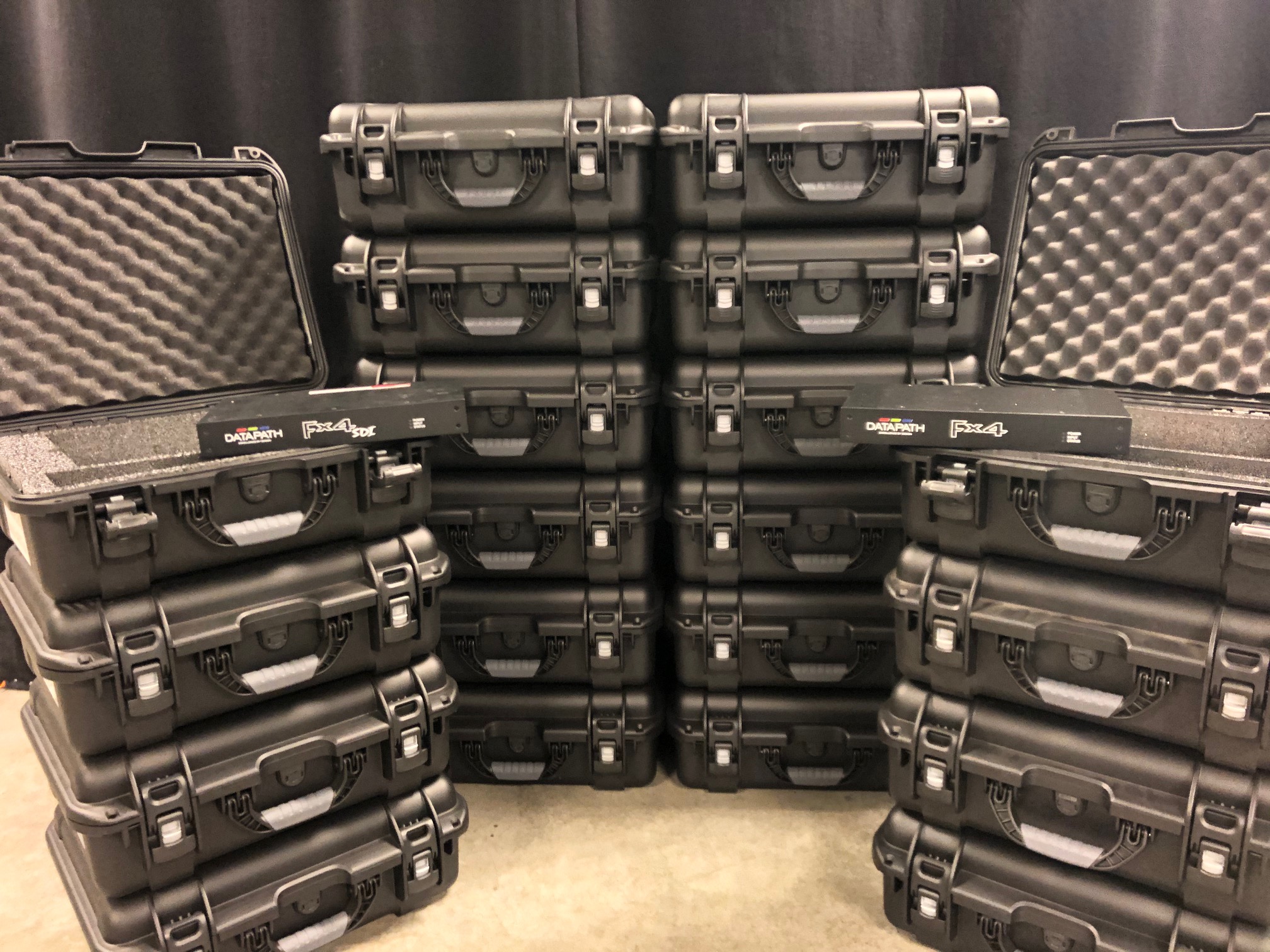

Datapath Fx4-SDI
Display Wall Controller
Product Highlights
- 3G SDI, DisplayPort 1.2 & HDMI 1.4 Input
- Flexible Video Wall Configuration
- Up to 4096 x 2160p Input at 60 fps
- 4 x SDI 1080p/60 Outputs
- Rotates, Crops & Scales
Take your video wall projects to the next level with the 4K Display Wall Controller from DATAPATH. Delivering four SDI outputs and the ability to loop multiple units together, this controller enables you to create even large and complex video wall configurations. DATAPATH’s intuitive wall designer software and fully featured API make projects quick to set up and easy to manage. The FX4 gives a choice of 3G-SDI, DisplayPort 1.2, and HDMI 1.4 inputs and offers up to DCI 4K 4096 x 2160p resolution at 60 fps.
| Video Input Connectors | 3G-SDI (1080p/60 or equivalent up to 148.5 MP/s) DisplayPort 1.2 (2160p/60 or equivalent up to 616 MP/s) HDMI 1.4 (2160p/30 or equivalent up to 297 MP/s) |
| Video Output Connectors | 4 x 3G-SDI (1080p/60 or equivalent up to 165 MP/s) Loop-Through: DisplayPort 1.2 (locked to selected video input resolution) |
| SMPTE Standards Supported | SMPTE ST 2048, up to 60 Hz SMPTE 274M, up to 60 Hz SMPTE 296M, up to 60 Hz |
| Input | 4096 x 2160p at 60, 8K x 8K maximum |
| Genlock Input | Analog black-burst on dedicated BNC connector Any video input (SDI, HDMI, DisplayPort) |
| Control Interfaces | 2 x 100BaseT Ethernet ports with built-in managed switch USB 2.0 Type-B connector (full-speed operation) |
| Firmware Updates | Via USB and Ethernet connection |
| Power Requirements | 100 to 240 VAC, 50/60 Hz, 35 W IEC switched and fused mains connector |
| Operating Temperature | 32 to 96°F / 0 to 35°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Relative Humidity | 5 to 90% non-condensing |
| Dimensions | 12.4 x 6.8 x 1.7″ / 31.6 x 17.2 x 4.2 cm |
| Weight | 4.1 lb (1.86 kg) |
-
