This high performance wireless intercom system is designed for extensive communication in large-scale operations. Its ability to maintain a strong and continuous wireless connection across an expansive coverage area while providing crystal-clear digital audio makes FreeSpeak II the ideal wireless roaming solution for any situation.

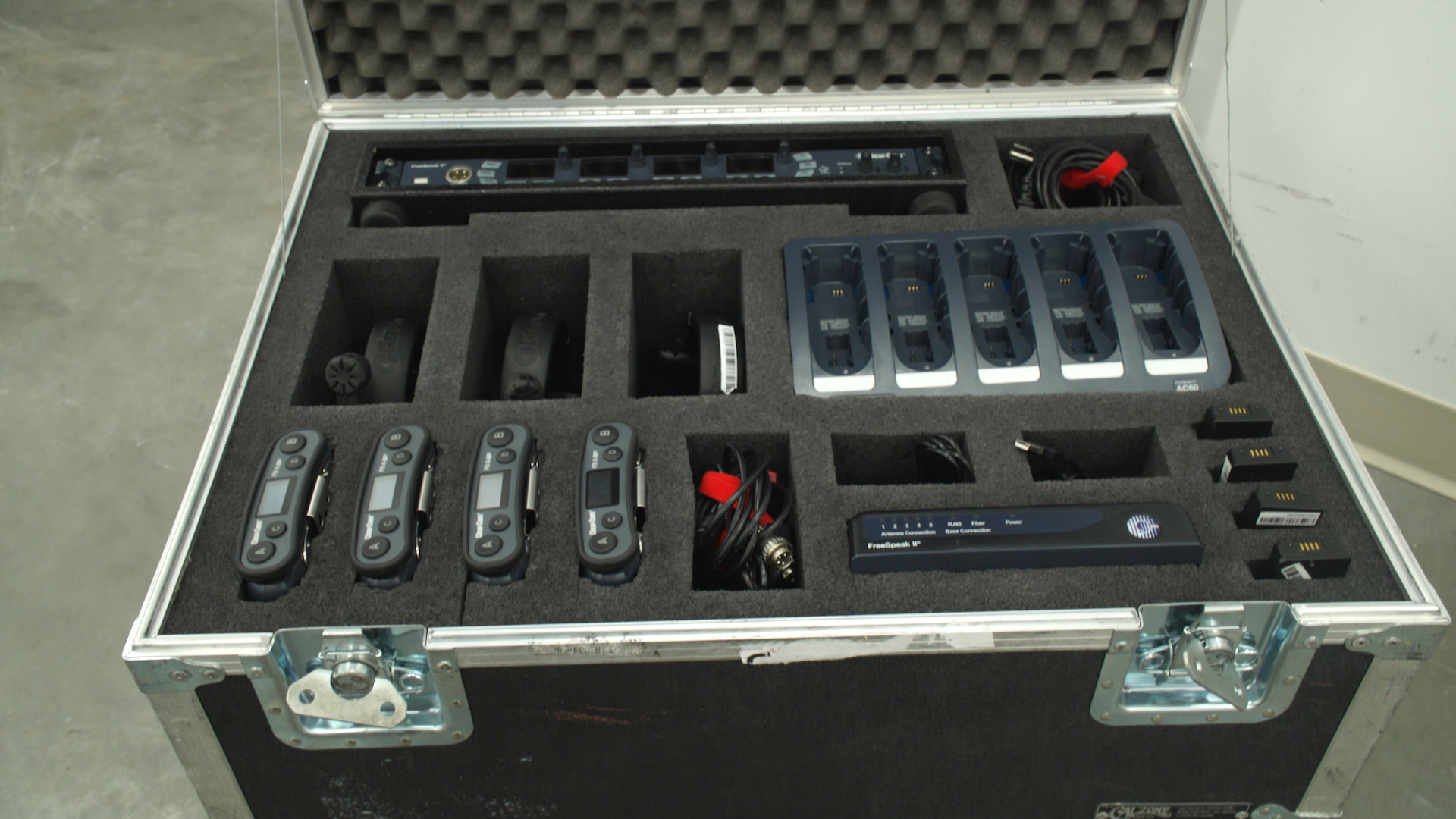

• (1) Clear-Com FreeSpeak II Base Station
• (1) Clear-Com FreeSpeak II Splitter
• (2) Clear-Com FreeSpeak II 1.9 GHz Transceiver
• (4) Clear-Com FreeSpeak II 1.9 GHz Beltpacks
• (5) Clear-Com CC-300-X4 Heavy Duty Single Ear Headsets
• (4) Clear-Com FreeSpeak II Rechargeable BP Batteries
• (1) Clear-Com FreeSpeak II 5-Way Charging Station
• (2) 25′ Cat5 Shielded Cable

Base II

Frequency Response: 100 Hz – 7.1 kHz

PC Programming Port: DB9

Relay Port: DB9

No. of Active Antenna Ports: 2

Matrix Connection: 4 RJ-45

Program Input: XLR-3F

Stage Announce Output: XLR-3M

Front Panel Display: 254 x 32 dot-graphic VFD

Dimensions: 1.75 x 19.0 x 12.5 in. (HxWxD)

Weight: 10.8 lbs

Beltpack

Audio Bandwidth: 200 Hz – 7.5 kHz

Mode of Operation: Full duplex on all routes

Level/Talk Controls: 4 pushbuttons, a reply button, 2 rotary controls

Frequency Spectrum: 1.88 GHz – 1.93 GHz

Range: Up to 1475 feet in good frequency conditions

Battery: Li-lon or 3 AA alkaline cells

Headset Connector: 4-pin male, Clearcom standard

Microphone Type: Electret and Dynamic

Headset Limiter: Selectable from beltpack menu

Dimensions: 5 x 1.5 x 3.75 in. (DxWxH)

Weight: 9 oz including batteries

Antenna

Beltpacks Supported Per Active Antenna: 1.9 Ghz Antenna: 5, 2.4 Ghz Antenna: 4

Active Antenna Transmission Range: Up to 1475 feet to beltpack in good conditions

Local Powering: 24 VDC power supply

Connection to Base: RJ-45

Dimensions: 6.9 x 5.4 x 2.1 in. (HxWxD)

Weight: 11.9 oz

Antenna Splitter

No. of Antennas: 5

No. of Splitters Per Base: 2

Connection Between Base and Splitter: CAT-5 or better cable with RJ-45

Powering of Splitter: Locally powered via supplied external power

Weight: 16 oz
