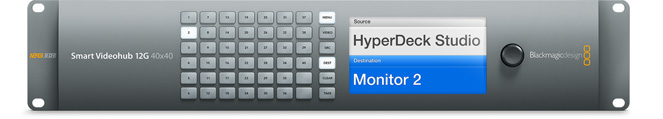

Blackmagic Design Smart Videohub 12G 40×40

A 12G-SDI, All-in-one Router

Blackmagic Design Smart Videohub 12G 40x40 for rent

Mouse roll-over to zoom image.

Product Highlights

Route any SDI Conforming signal up to 12G SDI
Control quickly from front-panel buttons or by Ethernet
Preview video sources right on the front panel
Add names for inputs and destinations, not just numbers

Rentex No. RTR12G40X | Mfr No. VHUBSMARTE12G4040

A 12G-SDI, All-in-one Router with front panel buttons and Preview display. Simultaneously connect and route any combination of SD, HD and Ultra HD video, all the way up to high frame rate 2160p60, all on the same router at the same time! You also get revolutionary new visual routing that lets you see your router connections as video on the built in LCD as you scroll the knob to select your routing. Now you can route your video simply by looking at the video!

Blackmagic Design Smart Videohub 12G 40x40 Mfr Spec Sheet

Blackmagic Design Smart Videohub 12G 40x40 Spec Sheet from Rentex

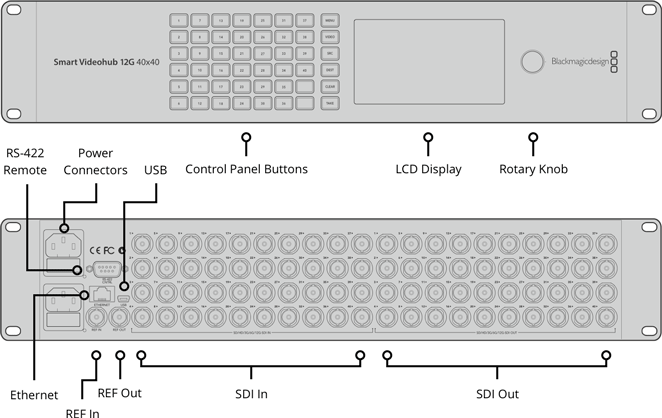

Connections

SDI Video Input	40 x 10-bit SD/HD/6G/12-SDI
SDI Video Output	40 x 10-bit SD/HD/6G/12-SDI
Reference Input	Blackburst and TriSync for SD, HD and UHD 4K
Multi-Rate Support	Auto detection of SD, HD, 6G or 12G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI
Updates	USB 2.0 high speed (480 Mb/s) interface or via Ethernet
Control	40 buttons for local control of Videohub 6 buttons and scroll wheel for control of LCD display 1 x RJ45 Ethernet 1 x RS-422 input for controlling router crosspoint switching
Configuration	Via front panel LCD or use either RJ45 Ethernet USB 2.0 for setting IP address only
Reclocking	On all SDI outputs, auto switching between SD, HD, 6G or 12G-SDI video

Standards

Format Support	SD Format Support 625/25 PAL 525/29.97 NTSC 525/29.98 NTSCHD Format Support 720p 50/59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/602K Format Support 2048x1080p 23.98/24/25 2048x1080PsF 23.98/24/254K Format Support 3840x2160p 23.98/24/25/29.97/30/50/60 4096x2160p 23.98/24/25/29/97/30/50/60
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M Level B, SMPTE 425M Level A, ITU-R BT.656, and ITU-R BT.601
SDI Video Rates	SD-SDI: 270 Mb/s HD-SDI: 1.5 Gb/s 3G-SDI: 3 Gb/s 6G-SDI: 6 Gb/s 12G-SDI: 12 Gb/s
SDI Video Sampling	4:2:2 and 4:4:4
SDI Color Precision	4:2:2 and 4:4:4 10-bit
SDI Audio Sampling	48 kHz and 24-bit
SDI Color Space	YUV or RGB
SDI Metadata Support	Video payload identification ancillary data as per SMPTE 352M

Software

Software Control	Router control included free for Windows and Mac OS X
Internal Software Upgrade	Via included updater application

General

Display	5″ (12.7 cm) LCD for video and menu settings
Power Supply	IEC power cables required 2 x 90 to 240 VAC input (for redundancy)
Power Fail Protection	Router connections preserved and restored instantly at power on
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 113°F (-20 to 45°C)
Relative Humidity	0 to 90% non-condensing
Rack Space	2 RU
Dimensions (W x H x D)	18.97 x 3.46 x 6.29″ (48.18 x 8.79 x 15.98 cm)
Weight	9.92 lb (4.5 kg)
