Barco UDX-4K40
37,500 Lumens 3-Chip DLP Laser Projector
Product Highlights
- 3-chip DLP 4K laser projector
- 37,500 lumens
- 4K resolution (3840 x 2160)

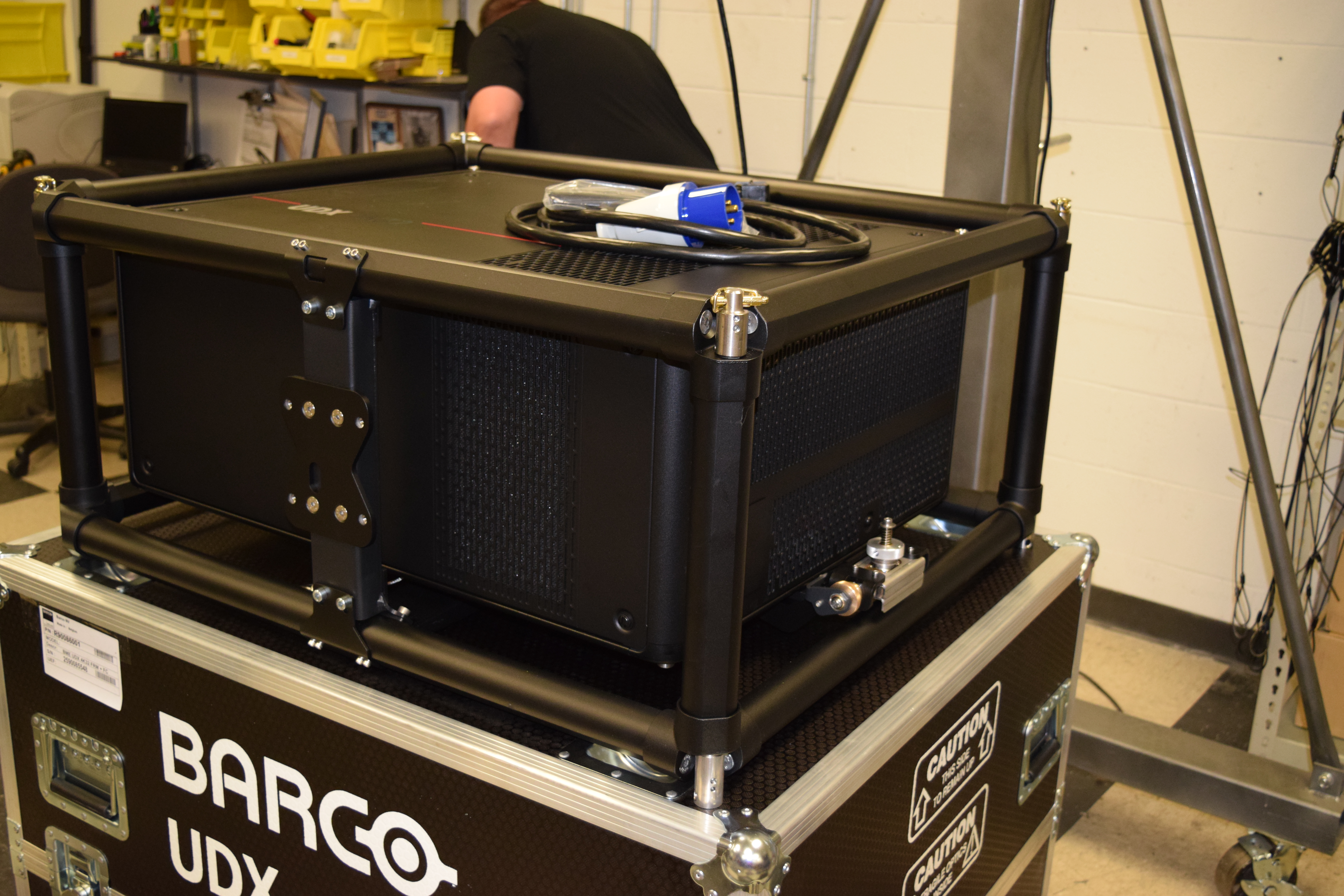

- Rugged design  – cage included with rental
- Unified Pulse electronics with Single Step Processing
The UDX-4K40 features 4K UHD resolution and 37,500 lumens light output to ensure flawless shows with accurate colors. Without compromising on brightness, the UDX color quality matches the renowned Xenon quality and outperforms the Rec. 709 color space.
| Projector type | 4K UHD 3-chip DLP digital projector |
|---|---|
| Technology | 0.9 DMD™ x3 |
| Resolution | 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) |
| Brightness | 37,500 (WQ)/36,500 (4K UHD) center lumens // 36,500 (WQ)/35,500 (4K UHD) ansi lumen // 40,000 ISO |
| Contrast ratio | 2,000:1 |
| Brightness uniformity | 95% |
| Aspect ratio | 16:10 |
| ScenergiX | Horizontal and vertical edge blending |
| Optical lens shift | Vertical between -100% to +130%, depending on lens Horizontal up to +/- 40%, depending on lens Motorized zoom and focus (with lens memory on TLD lenses) Motorized lens shift (with position memory on all lenses) |
| Color correction | P7 |
| Light source | laser phosphor with inorganic phosphor wheel |
| Light source lifetime | 20,000 hrs |
| Optical dowser | Digital |
| Picture-in-picture | Two sources simultaneously |
| Orientation | 360° |
| Sealed DLP™ core | standard |
| DMX 512 | standard |
| WARP | Direct adjust OSD + toolset |
| Image processing | Embedded warp & blend |
| Keystone correction | Yes |
| Integrated web server | Yes |
| CLO (constant light output) | Standard |
| 3D | Active eye wear (optional), passive circular (optional); 2 flash up to 240Hz* |

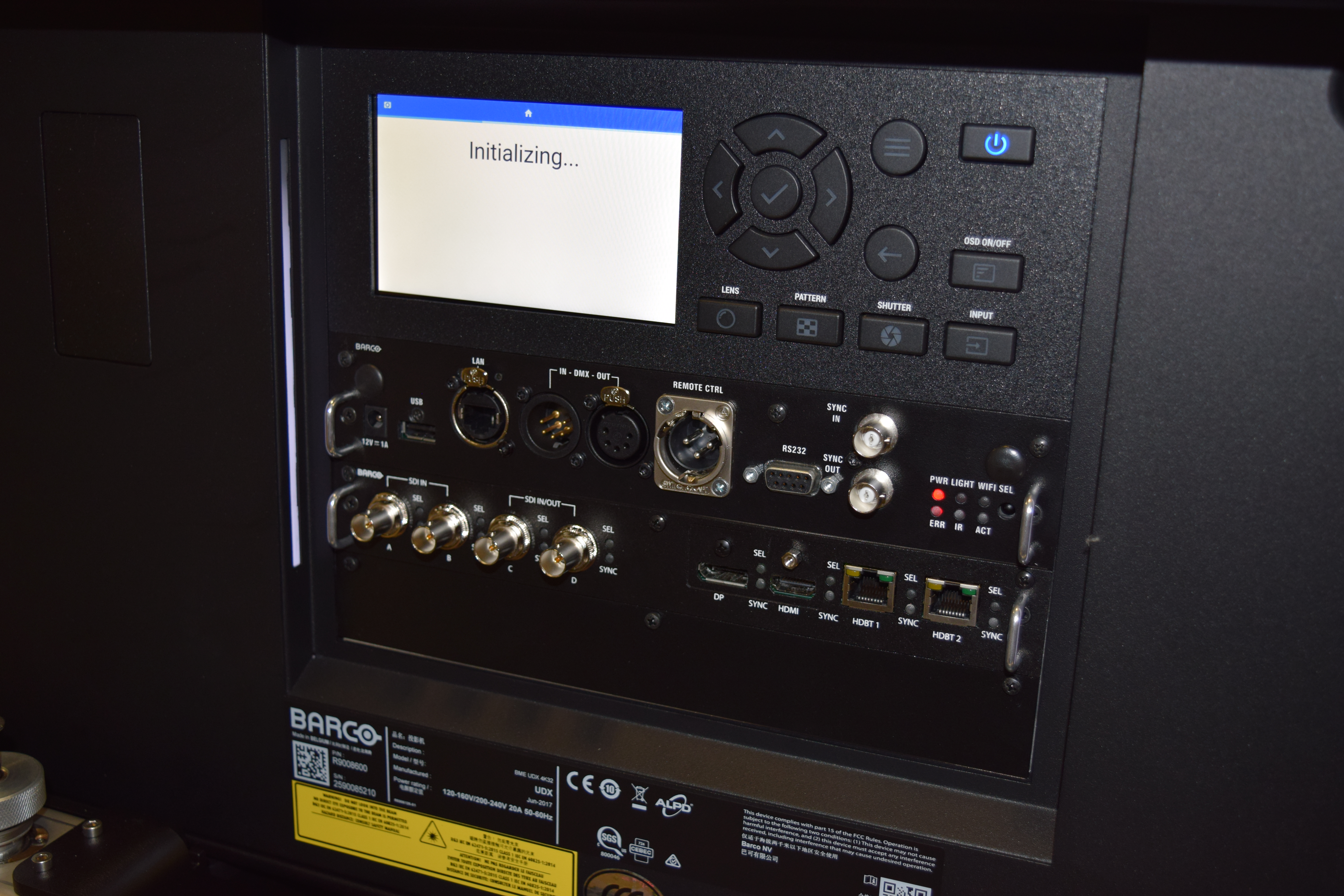

| Inputs | Single HDBaseT; HDMI2.0 (HDCP2.2, HDR10); DP 1.2 (HDCP 1.3); Quad 3G/12G SDI / BarcoLink Ultra |
| Optional Inputs | Quad DP1.2, Fiber SFP input |
| Input resolutions | From NTSC up to 4K (4,096 x 2,160)
refresh rates: 24hz to 120hz 4K/4KUHD (4096 x 2160/ 3860 x 2400) to 240hz WQXGA (2560 x 1600) |
| Max. pixel clock | 600 MHz |
| Software tools | Projector Toolset + Android** app + iOS** app |
| Control | XLR wired + IR, RS232, Wifi** (opt), GSM** (opt) |
| Network connection | 10/100 base-T, RJ-45 connection, Wifi** (optional) |
| Power requirements | 120-160 V (reduced brightness) / 200-240V (+/- 10%), 20A, 50-60Hz |
| Max. power consumption | 3750W |
| Noise level (typical at 25°C/77°F) | 58dB(A) |
| Operational ambient temperature | 0-40°C / 32°-104°F (reduce power >35°C) |
| Operational humidity | 0-80% (non condensing) |
| Dissipation BTU | Max. 12,795 BTU/h |
| Dimensions (WxLxH) | 25.98 x 32.67 x 13.77 inches |
| Weight | 91.62 kg (202 lbs.) without cage, 117.23 kg (258.47 lbs.) with cage |
-
0.8-1.16:1 WUXGA | .86-1.25:1 SXGA+
-
1.16 - 1.49:1 WUXGA | 1.25 - 1.6:1 SXGA+
-
1.39 - 1.87:1 WUXGA | 1.5 - 2.0:1 SXGA+
-
1.87 - 2.56:1 WUXGA | 2.0 - 2.8:1 SXGA+
-
2.56 - 4.17:1 WUXGA | 2.8 - 4.5:1 SXGA+
-
4.17 - 6.95:1 WUXGA | 4.5 - 7.5:1 SXGA+
-
6.93 - 10.3:1 WUXGA | 7.5 - 11.2: SXGA+
-
0.40:1 WUXGA | 0.43:1 WQXGA and 4KUHD
-
Mobile Unibody 16:9 Screen System
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
16:9 Aspect Ratio
-
3:1 Aspect Ratio
-
5:1 Aspect Ratio
-
3:1 Aspect Ratio
-
3:1 Aspect Ratio
-
3:1 Aspect Ratio
-
3:1 Aspect Ratio
-
With (2)120/208v Soca
-
120V/208V
-
L2130 input, 3 True1 208V output
-
6' Tails
-
8' Length
-
10' Length
