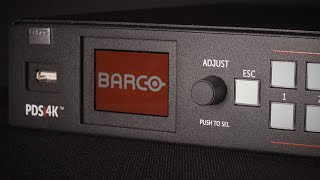

Barco PDS-4K SDI with Audio and DP Expansion

Full featured 10-in 4-out multi-format multi-screen video switcher with Dante audio

Barco PDS-4K SDI with Audio and DP Expansion for rent

Mouse roll-over to zoom image.

Product Highlights

(6) HDMI 2.0, (2) 12G-SDI, (2) DisplayPort 1.2 inputs
(4) discrete outputs at 4k30 and below, (2) at 4k60 on HDMI 2.0 and 12G-SDI
Dedicated Multiviewer output
Dante audio with dedicated, redundant network
Auto-setup will pre-set switcher according to connected HDMI outputs and inputs

Rentex No. SWPDS4K | Mfr No. Barco PDS-4K SDI

Carrying Barco switching pedigree to small and mid-sized rooms, the Barco PDS-4K SDI enables single, dual, and quad screen switching with high-quality 4K processing. Equipped with the optional interface card, the PDS-4K SDI adds Dante audio routing and has a total of 10 inputs including (6) HDMI 2.0, (2) 12G-SDI, and (2) DisplayPort 1.2 – all mixed on up to four seamless mixing program outputs at low latency along with a multi-viewer. Each output is available by HDMI 2.0 and 12G-SDI simultaneously. Auto-setup features and front panel control for most set-ups, or drive a more complex event using Event Master Toolset – the same software used with Barco e2 and S3.

PDS4K - Tech Specs

PDS4K - Quick Start

PDS4K - User Guide

PDS4K - Technical Drawing

Live effects canvas	2x outputs up to 4K60 or 4x outputs up to 4K30 each with a single mixing PiP or two non-mixing PiPs on a still background
Video inputs	6x HDMI 2.0 connectors 2x 12G-SDI connectors
Video outputs	4x HDMI 2.0 connectors 4x 12G-SDI connectors
Program output	Two UHD @60 PGM or Four UHD @30 / FHD @60 PGM
Mixers	1 mixer per PGM output
Keying/Mixing	Luma and Chroma on non-mixing PiPs
Still stores	Eight stills, up to 4K each
Multiviewer	1x UHD@60 output with user definable layouts consisting of inputs plus PVW and PGM for each screen
Expandability	Option card slot for other video connector types and/or Dante audio
HDCP	HDCP 1.x and 2.2
Control	front panel mappable buttons Event Master screen management software for PC or MAC Event Master controllers WebUI Ethernet RJ-45, 1000/100/10 Mbps autosense
Noise Level	37 dB in a room temperature environment (23°C/73°F)
Warranty	3 years parts and labor
Dimensions (HxWxD)	6.62 cm (2.605 in) x 48.41 cm (19.06 in) x 40,9 cm (16.1 in)
Weight	6.21 kg (13.7 lbs)
Environmental temperature	0-40° C (32-104 F)
Power	Input power: 100-240 VAC 50/60Hz 151W
Environmental humidity	0-95% non-condensing (non-operating) 0-85% non-condensing (operational)
Notes	Option Card slot to support additional video input connectors, embedded audio processing and Dante Audio
