Barco CSE-200
ClickShare Wireless Presentation System
Product Highlights
- Additional 2-Pack ClickShare Buttons Available
- IEEE 802.11 a/g/n Wireless Standards
- Connect up to 16 ClickShare Buttons
- Up to 3840 x 2160 Input Resolutions

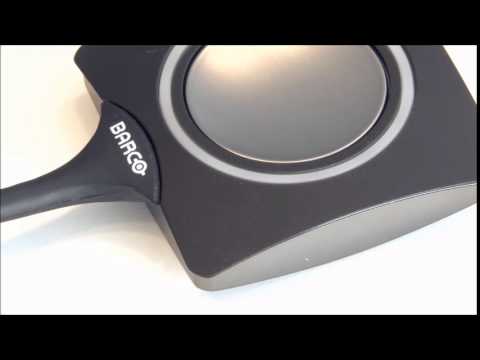

The CSE-200 ClickShare Wireless Presentation System from Barco consists of two USB-powered devices, each with a ClickShare button, and a base unit. The base unit has a fixed connection to the meeting room’s visualization system, and takes care of all the needed processing. You can simply connect a button to a Windows or Mac computer and click the ClickShare button, and immediately the desktop is wirelessly transferred to the large visualization system. Alternatively, when using a smartphone or tablet (either iOS or Android), a simple app allows you to share content as well. The system’s stability and ease of use, also limits the number of needed interventions by the IT department. You can connect up to 16 ClickShare buttons to the CSM base unit simultaneously.
- (1) Barco CSE-200 Clickshare Base
- (4) Barco Clickshare Button
| Wireless Standards | IEEE 802.11 a/g/n |
| Frequency Band | 2.4 GHz and 5 GHz |
| Connectors | 1 x HDMI (output) 3 x USB 1 x Ethernet LAN 1 x Audio analog line out (3.5 mm) 1 x S/PDIF |
| Audio | Digital: HDMI and S/PDIF Analog: 3.5 mm line out |
| Input Resolutions | 3840 x 2160 (max) |
| Output Resolutions | 1920 x 1200 |
| Simultaneous Sources on Screen | 2 |
| Simultaneous Connections | 16 |
| Frame Rate | Up to 30 fps |
| Range | Up to 100′ (30.5 m) between ClickShare button and ClickShare base unit |
| Authentication Protocols | WPA2ÂPSK in stand-alone mode WPA2ÂPSK or IEEE 802.1X in network integration mode |
| Compatibility | Operating System: Windows 7/8/8.1/10 Mac OS X 10.10/10.11 Android 4.1 and later (ClickShare app) iOS 7.0 and later (ClickShare app) |
| Power Consumption | Operation: 6 W (typical) / 18 W (max) Standby: 2.6 W (ECO standby) / 0.4 W (Deep standby) |
| Operating Temperature | 32 to 104° F (0 to 40° C) |
| Storage Temperature | -4 to 140° F (-20 to 60° C) |
| Operating Relative Humidity | 0 to 85% (nonÂ-condensing) |
| Storage Relative Humidity | 0 to 90% (nonÂ-condensing) |
| Kensington Security Slot | Yes |
| Certifications | FCC, CE |
| Dimensions | Excluding Antennas: 8.1 x 4.5 x 1.8″ (205 x 115 x 45 mm) Including Antennas: 8.1 x 5.9 x 5.3″ (205 x 150 x 135 mm) |
| Weight | 1.32 lb (600 g) |
-
