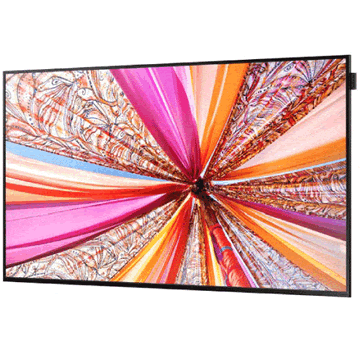

55″ Samsung DM55D / LH55DMDPLGA / ZA

Slim Direct-Lit LED Display

Mouse roll-over to zoom image.

Product Highlights

1080p (1920 x 1080) Native Resolution
Built-in Wi-Fi
Full Connectivity
Enhanced SSP System-on-Chip (SoC) Performance with Quad Core Processor
Sleek Industrial Design with Symmetrical 10.5mm Bezel

Rentex No. SM55DM55D | Mfr No. DM55D / LH55DMDPLGA/ZA

Slim-direct LED backlight technology on the DM55D delivers a sleek industrial design with a 2″ chassis depth that is combined with a symmetrical 9.5mm bezel for an elegant look. Expanding your versatility even more, you can enjoy easy media sharing and screen control with built-in Wi-Fi. Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include D-Sub, Component, Composite, HDMI, DVI, USB, SD, RS232C In/Out, IR In/Out and more.

Rentex Spec DM55D

Display
Panel Technology	D-LED BLU
Screen Size	55.0″ (139.7 cm)
Refresh Rate	60 Hz
Resolution	1920 x 1080
Aspect Ratio	16:9
Brightness	450 cd/m²
Contrast Ratio (Typical)	5000:1
Response Time (GtG)	8 ms
Viewing Angle (H x V)	178 x 178°

System on Chip
Processor	1 GHz quad-core
Storage	8 GB
RAM	1.5 GB
Supported File Formats	Photo: .jpg, .jpeg, .png, .bmp, .mpo Audio: .mp3, .m4a, .mpa, .aac, .3ga, .flac Video: .avi, .mkv, .asf, .wmv, .mp4, .3gp, .vro, .mpg, .mpeg, .ts, .tp, .trp, .mov, .flv, .vob, .svi, .m2ts, .mts, .divx, .webm

Connectivity
Input	1 x VGA (D-Sub 15-pin) 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI 1 x Component/Composite via ⅛” 1 x ⅛” audio 1 x USB 5V, 1.5A
Output	1 x DisplayPort 1.2 loop out 1 x ⅛” audio
Other Connectors	1 x SD card slot 1 x Antenna in 1 x RS232C in/out via ⅛” jack 1 x LAN

General
Speakers	Yes, 2 x 10W
Power Requirements	100 to 240 VAC, ±10%, 50/60 Hz
Power Consumption	Typical: 65 W Maximum: 176 W Standby: 0.5 W
Environmental	Operating Temperature: 32 to 104°F (0 to 40°C) Operating Humidity: 10 to 80% non-condensing
VESA Compatibility	200 x 200 mm
Certifications	ENERGY STAR 6.0 RoHS EMC emission standard
Bezel Width	Top, Sides: 0.4″ (9.5 mm) Bottom: 0.6″ (15.0 mm)
Dimensions (WxHxD)	Without Stand: 48.4 x 27.8 x 2.0″ (122.9 x 70.6 x 5.1 cm)
Weight	34.0 lb (15.4 kg)
